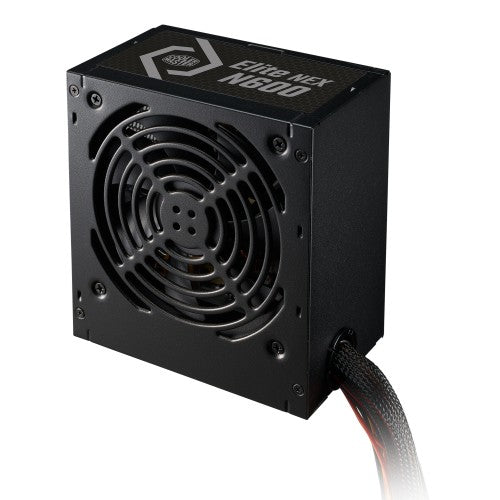

NEX Level Power The Elite NEX power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, active PFC and 3 years warranty deliver a complete power solution at a popular price.
Active PFC + Dual Forward Topology Design Constructed with the active PFC for high-end power supply and the dual forward topology design, it can not only reduce interference and increase power quality, but reduce power loss to increase efficiency.
High Temperature Resistance It's capable of operating at 40°C under full load, allowing a longer lifespan in warmer environments.
Peak Power Tolerance This unit can reliably push an additional 100W at peak power load for up to 20 seconds.
75% Efficiency The power supply maintains an average efficiency of 75% at typical loads.
Specifications
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Cooling type
Active
Design
80 PLUS certification
No
Certification
ErP 2014 Lot 3, TUV, CCC, EAC
Product colour
Black
Fan diameter
12 cm
Number of fans
1 fan(s)
Cooling type
Active
Power
Total power
600 W
Power Good signal delay range
100 - 500 ms
AC input voltage
200 - 240 V
Input current
4.5 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
552 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
19 A
Max output current (+12V)
46 A
Max output current (+5V)
17 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over power, Over voltage, Overheating, Short circuit, Under voltage
