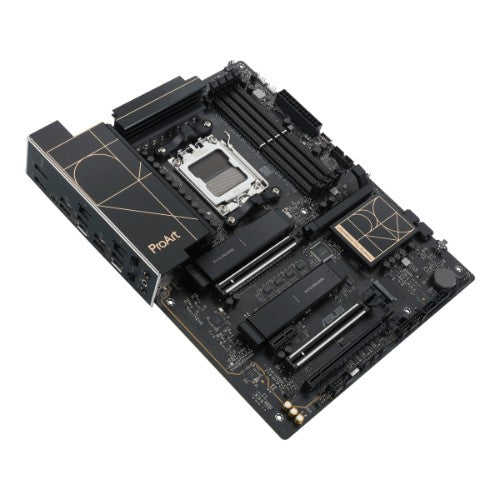

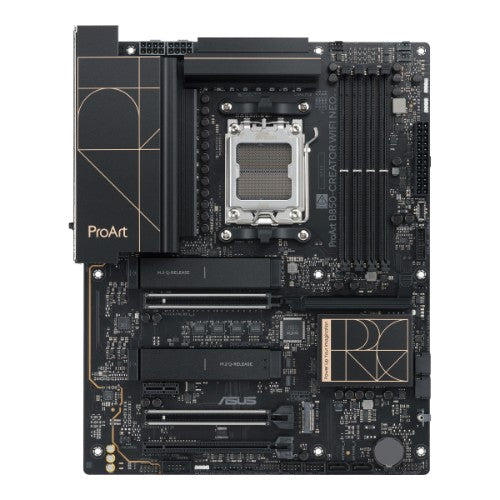

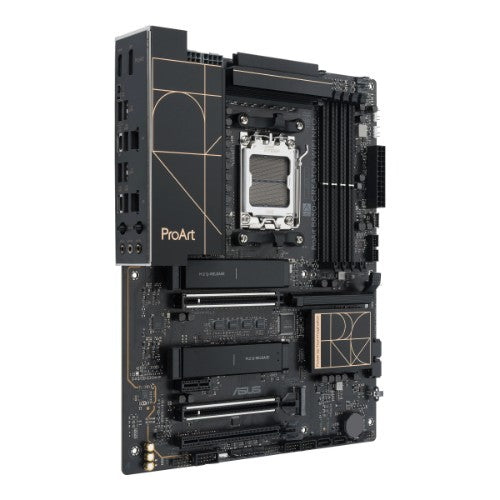

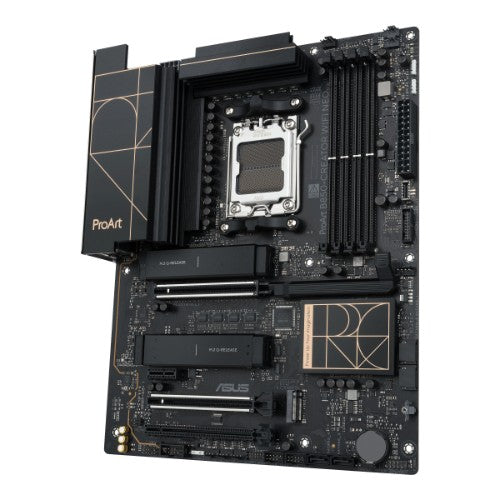

ASUS PROART B850-CREATOR WIFI NEO AMD B850 Socket AM5 ATX

ProArt B850-CREATOR WIFI NEO AMD B850 ATX motherboard (14+2+1 Power Stages, DDR5 with AEMP, WiFi 7, Dual Realtek 5Gb Ethernet, 3x M.2 slots, PCIe 5.0 x16 SafeSlots, PCIe Slot Q-Release)

Description

The ProArt B850-Creator WiFi Neo is designed to empower creators at every level, delivering optimized performance for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, as well as AMD EPYC™ 4005 Series CPUs. Featuring a robust 14+2+1 power stage design, DDR5 support, PCIe® 5.0 expansion, and ultrafast connectivity—including dual 5G Ethernet and WiFi 7—it provides a reliable foundation for demanding creative workloads.

With a refined aesthetic that reflects a professional and elegant design philosophy, the motherboard showcases layered black tones accented with metallic gold details. This platform seamlessly combines performance, connectivity, and design, delivering the power required for today's advanced AI PC applications.

Specifications

Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of COM connectors	1
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
Number of water pump connectors	1
Number of temperature sensor headers	1
Number of RGB LED pin headers	3
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
Cooling type	Passive
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	9000 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Maximum resolution	7680 x 4320 pixels

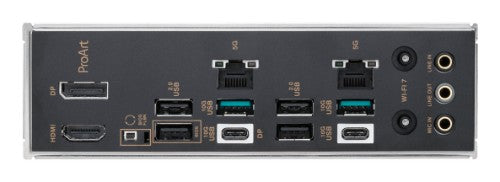

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
DisplayPort version	1.4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Realtek RTL8922AE
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
Cooling type	Passive
Windows operating systems supported	Windows 11
Audio chip	Realtek ALC1220P
Product colour	Black
Expansion slots
Number of M.2 (M) slots	3
PCI Express x4 (Gen 1.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	2
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
BIOS flashback button	Yes
Power
Power source type	ATX
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.14 kg
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	48 mm
Weight	1.33 kg
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.14 kg

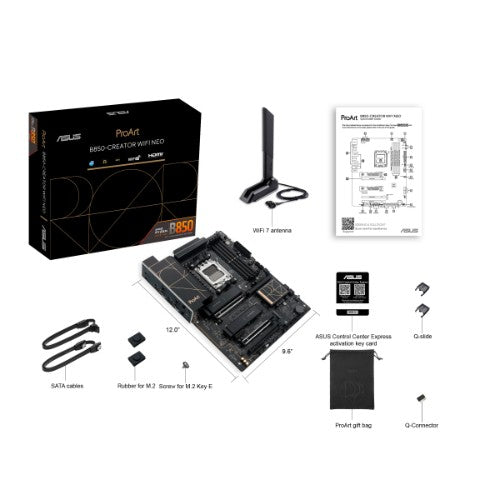

Packaging content
Quick installation guide	Yes
Cables included	SATA
Screws included	Yes
Antenna included	Yes
Other features
Height	48 mm
mSATA ports quantity	0
Weight	1.33 kg
Quick installation guide	Yes
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.14 kg
