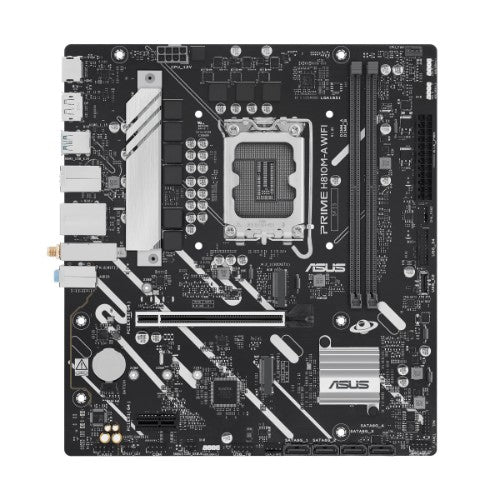

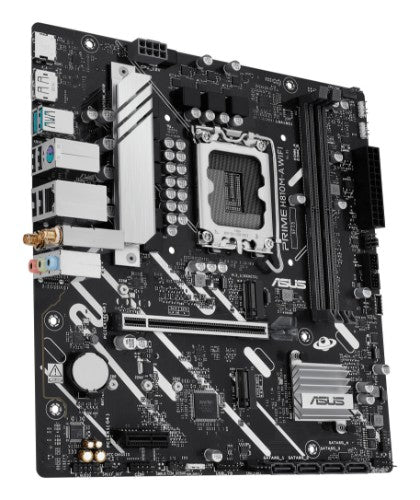

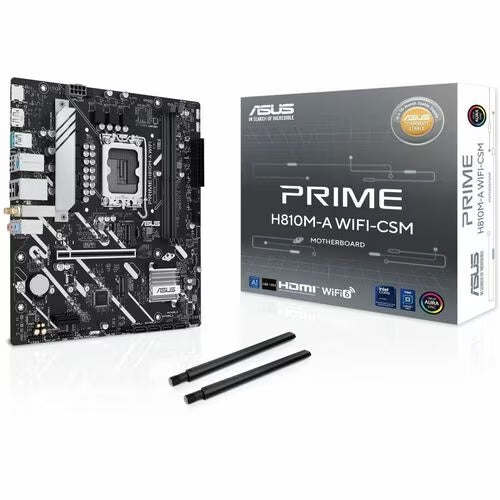

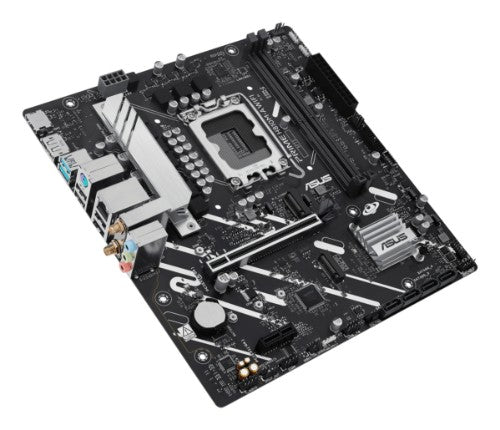

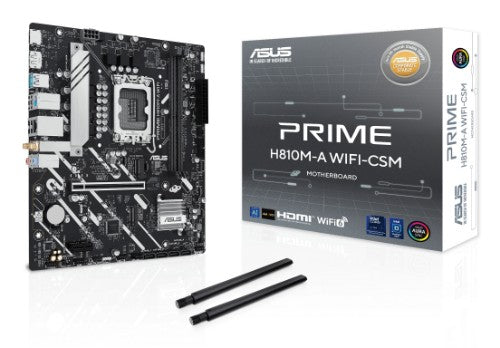

ASUS PRIME H810M-A WIFI-CSM Intel H810 LGA 1851 (Socket V1) micro ATX

Intel H810, LGA1851, 2 x DIMM slots, max. 128GB, DDR5, Ethernet, Wi-Fi 6 (802.11ax), Bluetooth v5.3*, 256 (128+128) Mb Flash ROM, UEFI AMI BIOS, micro-ATX

Description

Prime H810M-A WIFI-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Number of CPU fan connectors	1
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H810
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64, Windows 11
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	128 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	6400 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	6
Graphics
Parallel processing technology support	Not supported

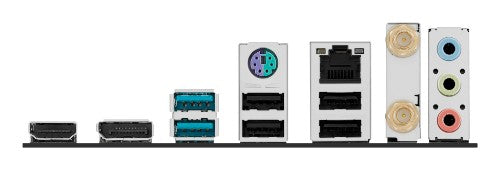

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	1
Microphone in	Yes
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes

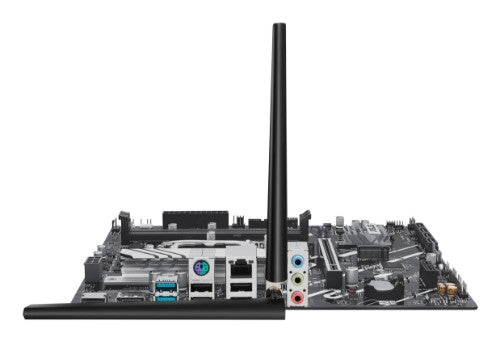

Wi-Fi	Yes
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Features
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel H810
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64, Windows 11
Product colour	Multicolour
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Weight & dimensions
Width	244 mm
Depth	222 mm
Other features
PCI Express x1 (Gen 4.x) slots	1
