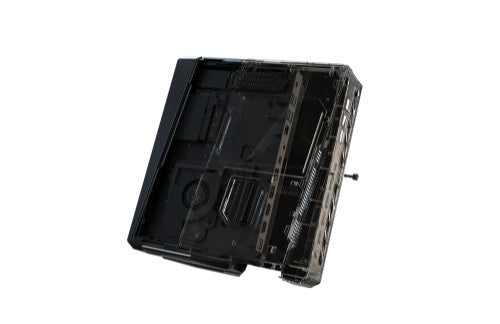

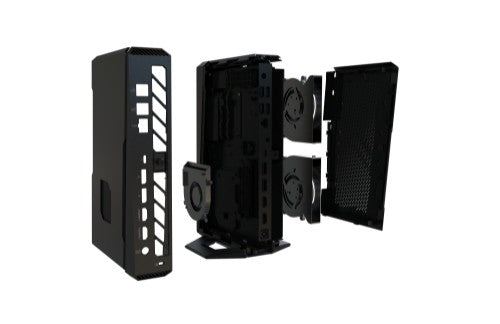

ASUS NUC 15 Performance RNUC15JNK7X50004 PC/workstation barebone 3L sized PC Black 255HX

ASUS NUC 15 Performance RNUC15JNK7X50004, 3L sized PC, Mini PC barebone, DDR5-SDRAM, PCI Express, Wi-Fi 7 (802.11be), 330 W

Description

ASUS NUC 15 Performance RNUC15JNK7X50004. Chassis type: 3L sized PC, Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 48 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Maximum storage capacity: 2 TB. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 5.2. Cooling type: Active. Power supply: 330 W

Specifications

Processor
Built-in processor	Yes
Processor model	255HX
Processor boost frequency	5.2 GHz
Processor threads	20
Processor family	Intel Core Ultra 7
Processor cores	20
Processor manufacturer	Intel
Processor cache	30 MB
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor generation	Intel Core Ultra (Series 2)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	6400 MHz
Maximum internal memory	48 GB
Internal memory installed	No
Video
Graphics card family	Intel, NVIDIA
On-board graphics card	Yes
Graphics card memory type	GDDR7
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	PCI Express
Maximum storage capacity	2 TB
SSD form factor	M.2
NVMe	Yes
Storage drives installed	No
Graphics
Graphics card family	Intel, NVIDIA
On-board graphics card	Yes
Number of displays supported	5
Graphics card memory type	GDDR7
On-board graphics card model	Intel® Graphics
Discrete graphics card model	NVIDIA GeForce RTX 5060
Performance
Audio chip	Realtek ALC3251
Number of displays supported	5
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC3251
Network
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth version	5.2
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE200
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	2.1
Combo headphone/mic port	Yes
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
DC-in jack	Yes
Thunderbolt 4 ports quantity	1
Design
Product type	Mini PC barebone
On/off switch	Yes
Cooling type	Active
Product colour	Black
Chassis type	3L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Colour
Product colour	Black
Technical details
Cooling type	Active
Chassis type	3L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	5
Power
AC adapter output voltage	19.5 V
AC adapter output current	16.9 A
Power supply type	External AC adapter
Power supply	330 W
Weight & dimensions
Width	282.4 mm
Depth	187.7 mm
Height	56.5 mm
Weight	3.12 kg
Other features
Chassis type	3L sized PC
