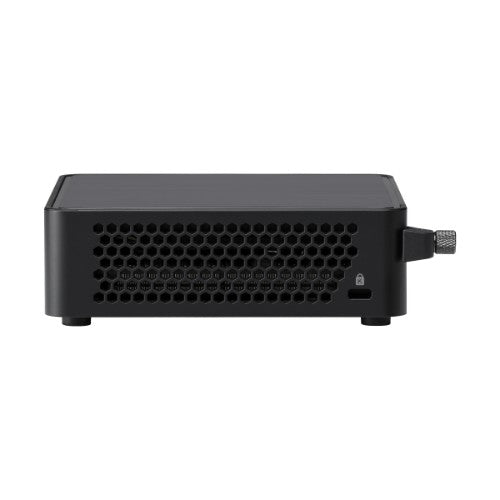

ASUS NUC 14 Pro Slim Kit RNUC14RVKU700000I Black 155H

ASUS NUC 14 Pro Kit (NUC14RVK-B)

Key Features

• Performance: Delivers best-in-class performance among comparable mini-PC offerings
• Manageability: Most comprehensive mini-PC with Intel vPro® Enterprise for exceptional security, manageability, and stability
• AI Ready: Harnesses the prowess of Intel® Core™ Ultra processors’ three AI engines for high throughput, low power, and fast response
• Wi-Fi Sensing: Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
• Wireless Connectivity: Delivers seamless connectivity for certified Bluetooth® dongle-free experiences
• Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster

Description

AI-Enabled Mini PC designed for everyday computing needs, featuring Intel® Core™ Ultra processors, Arc™ GPU, Intel AI Boost (NPU), and toolless-access chassis.

Specifications

Processor
Built-in processor	Yes
Processor model	155H
Processor boost frequency	4.8 GHz
Processor threads	22
Processor family	Intel Core Ultra 7
Processor cores	16
Processor manufacturer	Intel
Processor cache	24 MB
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	0.7 MHz
Processor generation	Intel® Core™ Ultra (Series 1)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	5600 MHz
Maximum internal memory	48 GB
Internal memory installed	No
Video
On-board graphics card	Yes
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	PCI Express
Number of storage drives supported	2
SSD form factor	M.2
NVMe	Yes
Storage drives installed	No
Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth version	5.3
Bluetooth	Yes
Copper ethernet cabling technology	2.5GBASE-T
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211

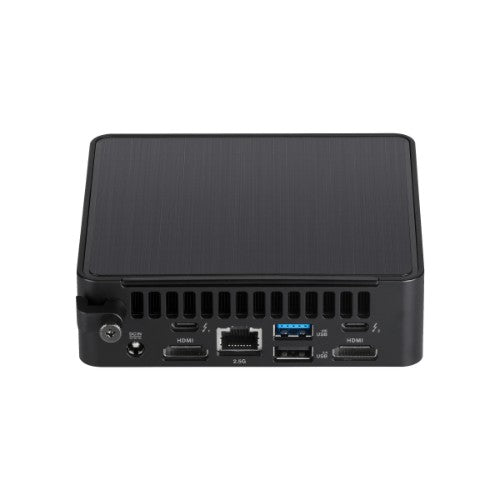

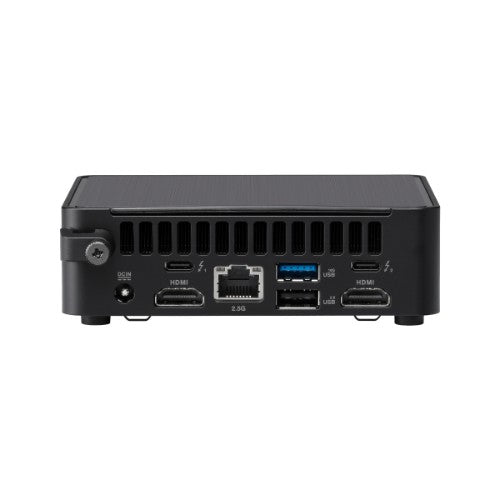

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Thunderbolt 4 ports quantity	2
Design
VESA mounting	Yes
Product type	Mini PC barebone
On/off switch	Yes
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Operating system installed	No
Processor special features
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	0.7 MHz
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Software
Operating system installed	No
Management features
On/off switch	Yes
Power
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Power supply type	External AC adapter
Power supply	120 W
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	37 mm
Weight	480 g
