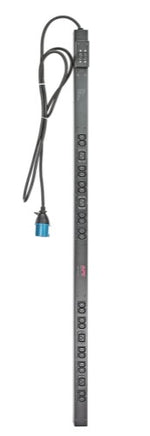

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19 power distribution unit (PDU) 24 AC outlet(s) 0U Black

Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19

Description

Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities

Specifications

Design
Type	Single-phase
PDU types	Basic
Mounting	Vertical
Product colour	Black
Rack capacity	0U
Ports & interfaces
Power plug	IEC 60309
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Input connection type	IEC 309 32A
Output connections	(20) IEC 320 C13 (4) IEC 320 C19
I/O ports	(20) IEC 320 C13 (4) IEC 320 C19 IEC 309 32A
Features
Cable length	3050 m
Ergonomics
Cable length	3050 m
Power
Maximum power	7680 W
Nominal input voltage	230 V
Nominal output voltage	230 V
Output voltage	230 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Operational conditions
Operating temperature (T-T)	-25 - 65 °C
Storage temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Weight	5.57 kg
Width	56 mm
Depth	44 mm
Height	1619 mm
Package width	152 mm
Package depth	127 mm
Package height	2134 mm
Package weight	6.48 kg
Packaging data
Package width	152 mm
Package depth	127 mm
Package height	2134 mm
Package weight	6.48 kg
