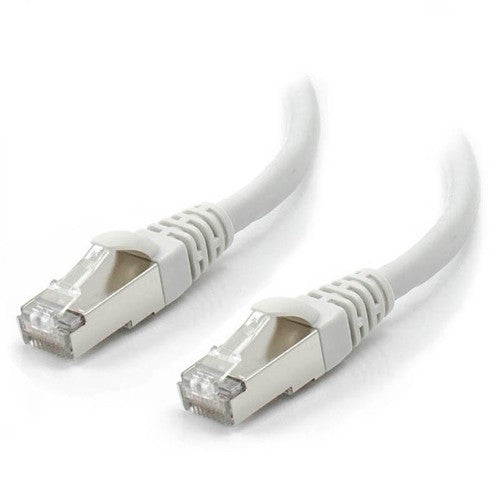

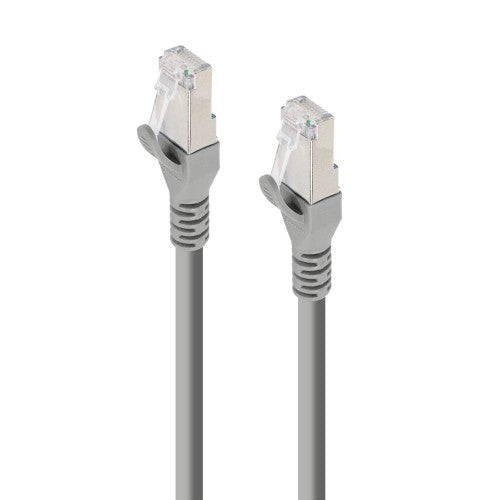

ALOGIC 10m Grey Shielded CAT6A LSZH Network Cable

10m Grey Shielded CAT6A LSZH Network Cable

Key Features

• Connect Your Ethernet Devices
• Performance rated for 750 MHz bandwidth
• Suitable for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet, & Lower
• Each twisted pair in the cable is individually wrapped in aluminum foil Mylar (100% Coverage)
• Overall Copper Braided Shielded
• Comes with LSZH (Low Smoke Zero Halogen) Jacket
• Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs
• Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt

Description

ALOGIC CAT6a shielded snagless patch cables are designed to meet and exceed the requirements for the next generation 10GBASE-T applications. The ALOGIC CAT6a cabling system provides an End to End solution that provides a guaranteed 750 Mhz of usable bandwidth. The ALOGIC CAT6a solution consists of Pre-terminated Cables, Patch Panels, Modular Jacks, Connectors and Bulk Installation Cables.

Specifications

Features
Product colour	Grey
Connector shielding	Yes
Snagless cable boot	Yes
Conductor material	Copper
Cable length	10 m
Cable standard	Cat6a
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10GBase-T
Data transfer rate	10000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Stranded
AWG wire size	26
Certification	A-Tick, ETL, UL, IEEE, RoHS
Ethernet interface type	10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Cable shape	Round
Connector 1 gender	Male
