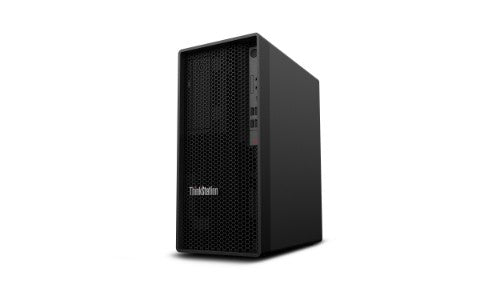

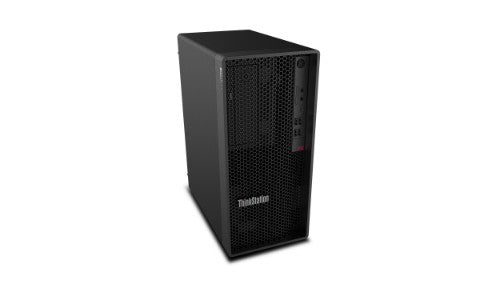

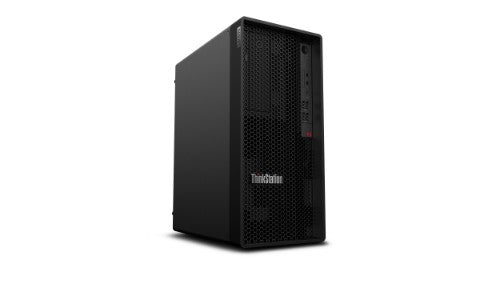

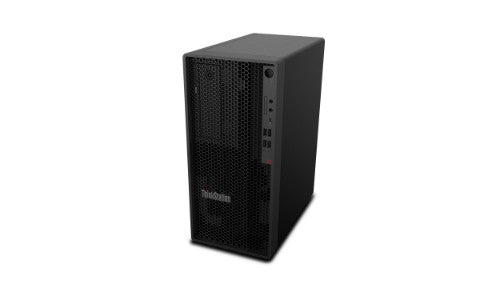

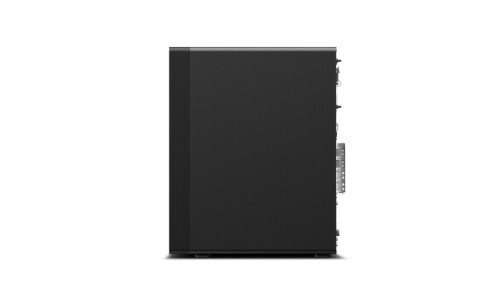

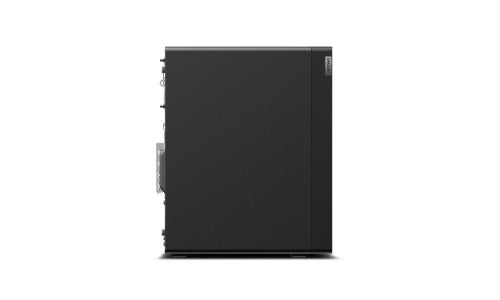

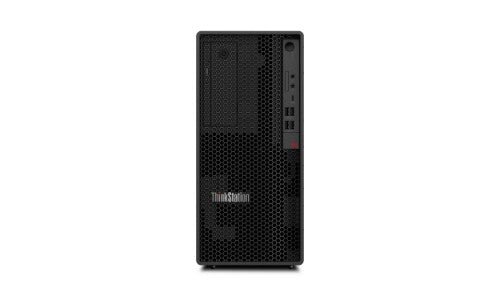

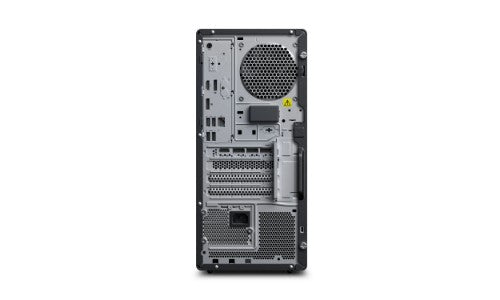

Lenovo ThinkStation P2 Tower Gen 2 Intel Core Ultra 9 285K 64 GB DDR5-SDRAM 3 TB SSD NVIDIA GeForce RTX 5070 Windows 11 Pro Workstation Black

Intel Core Ultra 9 285K (36MB Cache), 64GB DDR5-SDRAM, 3000GB SSD, DVD±RW, Intel Graphics, NVIDIA GeForce RTX 5070 (12GB GDDR7), LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core Ultra 9 285K (36MB Cache)
• NVIDIA GeForce RTX 5070 (12GB GDDR7)
• 64GB (5600MHz) DDR5-SDRAM & 3000GB SSD

Description

LENOVO THINKSTATION P2 TOWER GEN 2
Workstation Power at Desktop Value
Workstation performance is within reach with the Lenovo ThinkStation P2 Tower Gen 2. Intel® Core™ Ultra processors with an integrated neural processing unit (NPU) and NVIDIA RTX™ Ada Generation graphics set a new standard in the entry space while offering outstanding value. This workstation is ideal for entry-level CAD, product design, STEAM, and beyond.

POTENT COMBINED AI ACCELERATION
Accelerate Your Workflows with Advanced AI
Push your creative boundaries with next-generation AI – up to 36 TOPS from the system and integrated NPU, plus 192 TOPS from NVIDIA RTX™ Ada graphics. From simulation and modeling to automation, the ThinkStation P2 Tower Gen 2 empowers teams to streamline tasks and innovate faster.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	285K
Processor cores	24
Processor boost frequency	5.7 GHz
Processor cache	36 MB
Processor threads	24
Number of processors installed	1
Performance cores	8
Efficient cores	16
Performance-core base frequency	3.7 GHz
Efficient-core base frequency	3.2 GHz
Processor base power	125 W
Maximum turbo power	250 W
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.5 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Copilot+ PC	No
Memory
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Non-ECC	Yes
Storage
Total storage capacity	3 TB
Optical drive type	DVD±RW
Card reader integrated	Yes
Storage media	SSD
Number of storage drives installed	2
Number of HDDs installed	1
HDD capacity	2 TB
HDD interface	SATA
HDD size	3.5"
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
Compatible memory cards	SD
SSD form factor	M.2
Total HDDs capacity	2 TB
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	12 GB
On-board graphics card family	Intel Graphics
Discrete graphics card model	NVIDIA GeForce RTX 5070
Discrete graphics memory type	GDDR7
Number of discrete graphics cards	1
On-board graphics card model	Intel Graphics
On-board graphics card	Yes
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	DVD±RW
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
WLAN controller model	Intel Wi-Fi 7 BE200
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel® I219-LM
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Microphone in	Yes
DisplayPort version	1.4
USB 3.2 Gen 2x2 Type-C ports quantity	1
Design
Product colour	Black
Volume	17 L
Chassis type	Tower
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Certified refurbished	No
Performance
Audio chip	Realtek ALC623-CG
Number of speakers	1
Product type	Workstation
Motherboard chipset	Intel W880
Audio system	High Definition Audio
Password protection	Yes
Password protection type	BIOS, Power on
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	ENG-UK, US English
Copilot+ PC	No
Power
80 PLUS certification	80 PLUS Platinum
Power supply	750 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	TCO Certified 10.0
Compliance certificates	RoHS
Weight & dimensions
Volume	17 L
Width	170 mm
Depth	315.4 mm
Height	376 mm
Weight	9.67 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Technical details
Compliance certificates	RoHS
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes
