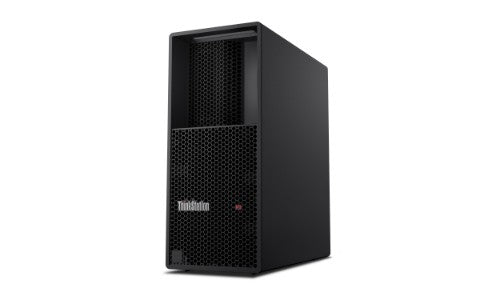

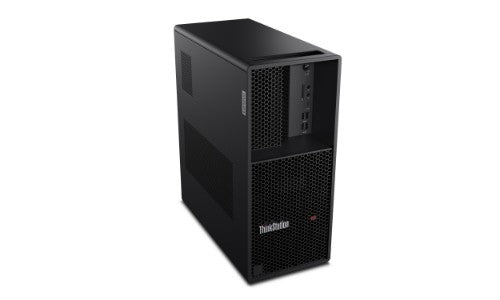

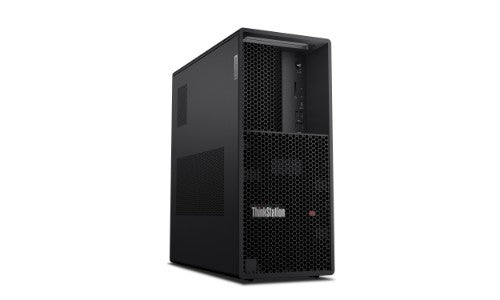

Lenovo ThinkStation P3 Tower Gen 2 Intel Core Ultra 9 285K 64 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A2000 Windows 11 Pro Workstation Black

Intel Core Ultra 9 285K (36MB Cache), 64GB DDR5-SDRAM, 1000GB SSD, Intel Graphics, NVIDIA RTX A2000 (16GB GDDR6), LAN, WLAN, Bluetooth, Windows 11 Pro

Key Features

• Windows 11 Pro
• Intel Core Ultra 9 285K (36MB Cache)
• NVIDIA RTX A2000 (16GB GDDR6)
• 64GB (5600MHz) DDR5-SDRAM (2 x 32) & 1000GB SSD

Description

Workstation might, desktop price
Designed by engineers for engineers, the Lenovo ThinkStation P3 Tower offers all the workhorse capabilities of a workstation for the price of a desktop. Built for tasks that require superior power and performance, it's equipped with Intel® Core™ processors with Intel vPro®, and supports professional NVIDIA® discrete graphics.

Delivering power & performance
The ThinkStation P3 Tower’s chassis has an advanced thermal design to promote extra power and performance, without overheating. It also comes with a choice of operating systems, including Windows 11 Pro and Linux®. In short, the P3 gives you the compute power to execute your visions, time and time again.

Configure it any which way
With three onboard DisplayPorts, plus the ability to configure up to eight more, the ThinkStation P3 Tower can support up to 12 independent displays. It also comes with a choice of operating systems, including Windows 11 Pro and Red Hat® Enterprise Linux®. And with heaps of speedy memory and SSD storage, plus five open PCIe slots, this workstation can be configured to tackle your most exacting workflows. It also comes with a USB mouse and keyboard.

Mission-critical performance, made easy
At the heart of every Lenovo ThinkStation is reliability. Proven to run in extreme conditions, the ThinkStation P3 Tower also boasts an array of independent software vendor (ISV) certifications. It's the perfect workstation for designers, engineers, and students looking for versatility, flexibility, and breakthrough performance to breeze through heavy workloads.

See the complete list of ISV certifications.

Security you can count on
The ThinkStation P3 Tower is protected with ThinkShield, a suite of hardware and software that work together to safeguard your workstation and data. This includes the discrete Trusted Platform Module (TPM) 2.0 to encrypt sensitive data, as well as various programs to prevent unauthorized access to the BIOS, plus self-healing software if the BIOS is corrupted or maliciously attacked. For extra peace of mind, it also supports Windows firmware updates.

Specifications may vary depending upon region / model.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	285K
Processor cores	24
Processor boost frequency	5.7 GHz
Processor cache	36 MB
Processor threads	24
Number of processors installed	1
Performance cores	8
Efficient cores	16
Performance-core base frequency	3.7 GHz
Efficient-core base frequency	3.2 GHz
Processor base power	125 W
Maximum turbo power	250 W
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.5 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	256 GB
Memory layout (slots x size)	2 x 32 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Non-ECC	Yes
Memory channels	Dual-channel
Storage
Total storage capacity	1 TB
Optical drive type	No
Card reader integrated	Yes
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	1 TB
Compatible memory cards	SD
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	16 GB
On-board graphics card family	Intel Graphics
Discrete graphics card model	NVIDIA RTX A2000
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel Graphics
On-board graphics card	Yes
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
WLAN controller model	Intel Wi-Fi 7 BE200
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel® I219-LM
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN (RJ-45) ports	1
Line-out	Yes
Microphone in	Yes
DisplayPort version	1.4
USB 3.2 Gen 2x2 Type-C ports quantity	2
Design
Product colour	Black
Volume	27 L
Chassis type	Tower
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Performance
Audio chip	Realtek ALC623-CG
Number of speakers	1
Product type	Workstation
Motherboard chipset	Intel W880
Audio system	High Definition Audio
Password protection	Yes
Password protection type	BIOS, Power on
Trusted Platform Module (TPM)	Yes
Built-in speaker(s)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system language	English, US English
Power
80 PLUS certification	80 PLUS Platinum
Power supply	1100 W
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	ErP Lot 3 TCO Certified 10.0 MIL-STD-810H
Compliance certificates	RoHS
Weight & dimensions
Volume	27 L
Width	180 mm
Depth	370 mm
Height	415 mm
Weight	14.4 kg
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Technical details
Compliance certificates	RoHS
Other features
Number of speakers	1
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Built-in speaker(s)	Yes
