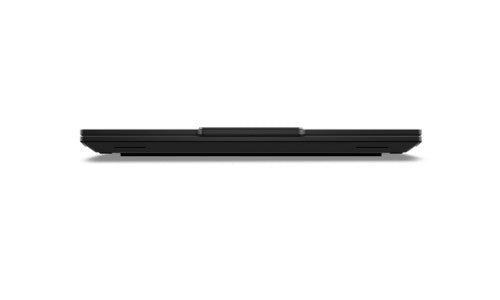

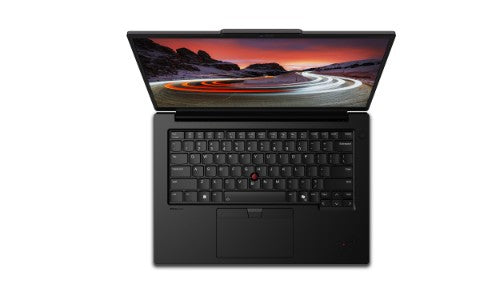

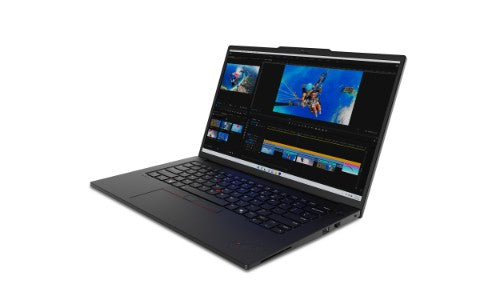

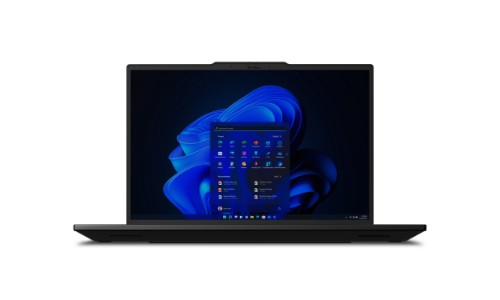

Lenovo ThinkPad P14s Gen 5 (Intel) Intel Core Ultra 7 155H Laptop 36.8 cm (14.5") WUXGA 16 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX 500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro English Black

Intel Core Ultra 7 155H (24MB Cache), 16GB DDR5-SDRAM, 512GB SSD, 36.8 cm (14.5") WUXGA 1920 x 1200 IPS, Intel Arc Graphics, NVIDIA RTX 500 Ada (4GB GDDR6), LAN, WLAN, Webcam, Windows 11 Pro 64-bit

Key Features

• Windows 11 Pro 64-bit
• Intel Core Ultra 7 155H (24MB Cache)
• 36.8 cm (14.5") WUXGA 1920 x 1200 IPS, NVIDIA RTX 500 Ada (4GB GDDR6)
• 16GB (5600MHz) DDR5-SDRAM (1 x 16) & 512GB SSD

Description

When You Dare to do More With Raw Power
Unlock AI efficiency for superior computing prowess with the ThinkPad P14s Gen 5 mobile workstation. Driven by Intel® Core™ Ultra processor with an integrated Neural Processing Unit (NPU), this machine ensures peak performance on the go. While Intel vPro® boosts enterprise security, pro-grade NVIDIA RTX™ graphics simplify heavy workflows.

Beyond the Boundaries of Conventional Viewing
We’ve redefined the visual experience on the P14s Gen 5 workstation. Its 14.5” screen brightens every pixel for precise clarity. Each display option is antiglare treated and certified for low blue light to prevent eye fatigue. Plus, the Communication Bar atop the screen boasts a hi-res 5MP camera and superior mics for consistent audio-video calls.

Break Free, Stay Connected — Anywhere, Everywhere
Propel your productivity on the P14s Gen 5 Intel mobile workstation. Its ample ports, swift memory, and uninterrupted connectivity with advanced WiFi capabilities enable you to keep pace with your workflows. Perfect for power users, industrial engineers, and designers, it renders top-tier performance at an economical price.

Customizable, Controllable, Unstoppable
Our ThinkPad keyboard is redesigned for improved accessibility and greater control. Its enlarged TrackPad offers navigation precision, while the TrackPoint Quick Menu optimizes audio-visual settings with just a double tap. That's not all — its advanced cooling system with dual-fan setup and rear vents guarantee peak thermal performance everywhere.

Performance That Doesn’t Cost the Earth
Designed for reliable operation under heavy workloads, the P14s Gen 5 workstation boasts a number of independent software vendors (ISV) certified apps like AVID® and Autodesk®. It’s also energy-efficient and holds several environmental certifications. Plus, you’ll love that it’s built in part with recycled plastics and metals. See Tech Specs.*See the complete list of ISV certifications

Security at its Finest: Defend, Detect, Deter
ThinkShield, our advanced security suite of hardware and software solutions, safeguards your device with data encryption and biometrics. Additionally, AI-powered Intel® Threat Detection technology helps prevent ransomware, cryptojacking, and more. When it comes to security and protecting your assets, we’ve got you covered!

Tested Tough to Challenge the Extremes
We use the US Department of Defense's MIL-STD 810H to create a balance of reliability and durability for ThinkPad laptops. Meeting or exceeding 12 standards, 26 procedures, and 200+ quality checks ensure that the ThinkPad P14s Gen 5 (14” Intel) mobile workstation runs in extreme conditions, and withstands life’s trips and spills.

Specifications

Design
Colour name	Black
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Aluminium
Display
HD type	WUXGA
Display diagonal	36.8 cm (14.5")
Display resolution	1920 x 1200 pixels
Touchscreen	No
LED backlight	Yes
Display brightness	300 cd/m²
Panel type	IPS
Contrast ratio (typical)	800:1
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	Intel® Core™ Ultra (Series 1)
Processor cache type	Smart Cache
Processor family	Intel Core Ultra 7
Processor model	155H
Processor boost frequency	4.8 GHz
Processor cores	16
Processor threads	22
Processor cache	24 MB
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor base power	28 W
Maximum turbo power	115 W
Efficient-core base frequency	0.9 GHz
Performance-core base frequency	1.4 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-core Base Frequency	700 MHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-cores	2
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Yes
Windows Studio effects support	Yes
AI datatype support on NPU	FP16, FP32, Int8
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	96 GB
Memory form factor	SO-DIMM
Memory channels	Dual-channel
Non-ECC	Yes
Storage
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	4 GB
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics
Discrete graphics card model	NVIDIA RTX 500 Ada
Discrete graphics memory type	GDDR6
On-board graphics card	Yes
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	1000,100 Mbit/s
Bluetooth version	5.3
WWAN	Not installed
Near Field Communication (NFC)	No
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	English
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	English
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	75 Wh
Fast charging	Yes
Power
AC adapter power	135 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, Power on, SSD, Supervisor
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	ENERGY STAR 8.0 EPEAT Gold Registered RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed Eyesafe® Certified 2.0 TÜV Rheinland® Low Blue Light
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Weight & dimensions
Weight	1.61 kg
Width	325.5 mm
Depth	227.6 mm
Height	18.5 mm
Technical details
Discrete graphics card memory	4 GB
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Compliance certificates	RoHS
Other features
WLAN controller model	Intel Wi-Fi 6E AX211
Audio system	Dolby Audio
On-board graphics card	Yes
Maximum shipping altitude	3048 m
Anti-glare screen	Yes
