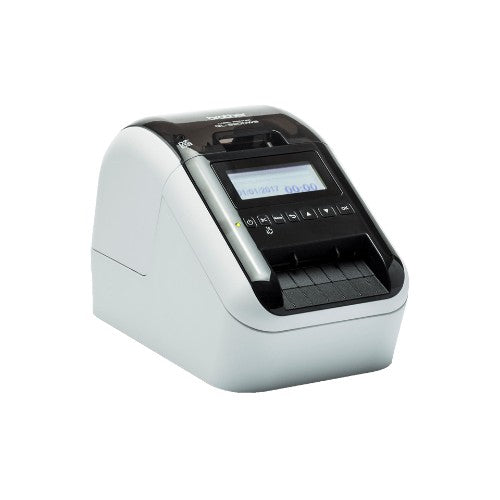

Brother QL-820NWBVMXX1 label printer Direct thermal Colour 300 x 600 DPI 176 mm/sec Wired & Wireless Ethernet LAN DK Wi-Fi Bluetooth

The flexible label printer which integrates with your connectivity requirements

Key Features

• USB, Ethernet, Wi-Fi and Bluetooth connectivity with support for MFi and AirPrint
• Choose from pre-sized labels or Brother’s continuous roll option which allows you to print labels to the size you need up to 1 metre in length
• Large backlit LCD display for easy set-up and operation
• Print in black and red without needing ink or toner
• Built-in cutter to create your own length labels
• Built-in memory function for stand-alone label printing, plus 3 years warranty

Reasons To Buy

Print labels without a computer

The QL-820NWB works as a traditional label printer - simply design your label on your PC or Mac, and then print. In addition, your commonly used labels can be uploaded to the internal memory locations. Then, simply scroll through the stored labels using the control panel to select and print the label. You can even print the current date and time or let the printer calculate a future one, making it ideal for printing labels for food packaging and "tested on / next test due" applications.

Print from PC, Mac, iOS and Android devices

Choose from several options for designing and printing labels. Download for free the P-touch Editor label design software for PC and Mac to design labels with text, barcodes, images and frames. Alternatively, head on over to your app store to download the free iPrint & Label app for iOS and Android, then quickly create and print labels from your mobile devices, wirelessly.

Optional Li-ion battery base

There are situations where you may need to print labels away from a power source, such as use on a portable trolley and printing from a tablet in retail, healthcare or similar industries. The optional Li-ion battery base has a fast charge function, and lasts for thousands of labels on a full charge.

Microsoft Office and database printing

The P-touch Editor add-in for Microsoft Office (Windows only) allows you to select and print data directly from within Word, Excel and Outlook with just a click! Or if you have text stored in an Excel or .csv file, you can import this into P-touch Editor. Simply place each field on your label layout to print many labels with the same format (design). Ideal for printing address, product and pricing labels.

Large range of labels for any application

The QL series label printers use Brother DK rolls - that easily slot-in for fast label changes. Several types are available:

Pre-sized die-cut adhesive labels in paper and plastic film material.
Continuous adhesive labels in paper and plastic film material that can be cut to the length you need (up to 1 metre).
Non-adhesive card ideal for receipts and name badges.
Removable adhesive for repositioning labels.

Integrated LCD for easy operation

Easily select the labels stored in memory that you wish to print, thanks to the large backlit graphic display. Setting up and configuring the machine is made much easier, as is troubleshooting if any errors occur with on-screen guidance on the problem and how to easily resolve it.

Full range of connectivity

With USB, wired Ethernet, Wi-Fi, and Bluetooth as standard, you have all your options covered. AirPrint and MFi certification (Made for iPod/iPhone/iPad) ensures maximum compatibility with Apple products too.

Description

Print labels from your PC, Mac, smartphone or tablet using USB, Ethernet, Wi-Fi and Bluetooth. Or alternatively use it in standalone mode by selecting and printing labels previously designed and uploaded to the memory, using the integrated backlit LCD display. When used with special rolls, you can print labels that can contain both black and red print without needing any ink. And when you can print custom sized labels up to one metre in length using the built-in cutter and continuous rolls, you can see why this is the most advanced label printer available.

Specifications

Printing
Date & time printing	Yes
Minimum print length	100 cm
Text alignment	Center, Justify, Left, Right
Print technology	Direct thermal
Colour	Yes
Vertical printing	Yes
Printing colours	Black, Red
Print speed	176 mm/sec
Print speed	110 lpm
Maximum resolution	300 x 600 DPI
Maximum printing width	6.2 cm
Maximum print height	6.1 cm
Display
Display	LCD
Backlight display	Yes
Memory
Memory capacity	255 characters
Flash memory	6 MB
Paper handling
Maximum label width	6.2 cm
Autocutter	Yes
Ports & interfaces
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth profiles	BIP, HCRP, OPP, SPP
Wi-Fi Direct	Yes
Mobile printing technologies	Apple AirPrint
Wi-Fi	Yes
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Bluetooth version	2.0+EDR
Bluetooth	Yes
USB port	Yes
Performance
Languages support	Multi
Number of languages	18
Tape type	DK
Number of styles	8
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Code-39 Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	5
Security algorithms	EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, LEAP, PEAP, WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Flash memory	6 MB
Page description languages	ESC P, Raster_P
Typestyles supported	Bold, Italics
Bitmap fonts	Gothic
Design
Display	LCD
Product colour	Black, White
Backlight display	Yes
Control type	Buttons
Built-in display	Yes
Power
Number of batteries supported	1
Rechargeable	Yes
Battery type	Built-in battery
Battery technology	Lithium-Ion (Li-Ion)
Auto power off	Yes
Battery
Rechargeable battery	Yes
System requirements
Linux operating systems supported	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	10 - 35 °C
Weight & dimensions
Package width	298 mm
Package depth	184 mm
Package height	232 mm
Width	185 mm
Depth	300 mm
Height	230 mm
Weight	2.25 kg
Package weight	2.67 kg
Packaging data
Package width	298 mm
Package depth	184 mm
Package height	232 mm
Package weight	2.67 kg
Packaging content
Manual	Yes
Warranty card	Yes
Quick start guide	Yes
Drivers included	Yes
Cables included	AC, USB
Bundled software	P-touch Editor 5, P-touch Editor Lite LAN, P-touch Address Book, BR Admin Light
Batteries included	Yes
AC adapter included	Yes
Other features
Products per pallet	72 pc(s)
Layers per pallet	6 pc(s)
Master (outer) cases per pallet	24 pc(s)
Date & time printing	Yes
Languages support	Multi
Number of languages	18
Number of frames	126
Networking features	10/100 Base-TX
Memory capacity	255 characters
Country of origin	China
Compatibility	Apple iPhone SE Apple iPhone 6s Plus Apple iPhone 6s Apple iPhone 6 Puls Apple iPhone 6 Apple iPhone 5s Apple iPhone 5c Apple iPhone 5 Apple iPhone 4s Apple iPad Pro (12.9-inch) Apple iPad Air2 Apple iPad Air Apple iPad mini 4 Apple iPad mini 3 Apple iPad mini 2 Apple iPad mini Apple iPad (4th generation) Apple iPad (3rd generation) Apple iPad2 Apple iPod touch (6th generation) Apple iPod touch (5th generation)
Spare part retention	5 year(s)
Logistics data
Pallet gross height	15 cm
Master (outer) cases per pallet layer	4 pc(s)
Pallet gross weight	275.5 kg
Products per pallet	72 pc(s)
Layers per pallet	6 pc(s)
Master (outer) cases per pallet	24 pc(s)
Harmonized System (HS) code	84433210
Technical details
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210
Pallet type	1200 x 1000 mm
