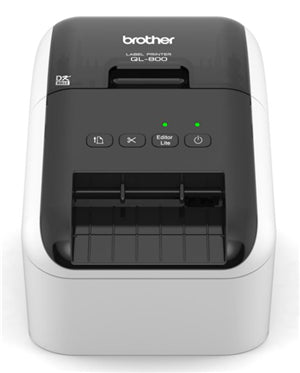

Brother QL-800 label printer Direct thermal Colour 300 x 600 DPI 148 mm/sec Wired DK

Ideal for high volume professional address labelling

Key Features

• Choose from pre-sized labels or Brother’s continuous roll option which allows you to print labels to the size you need up to 1 metre in length
• Each roll is supplied on a spool that simply slots into the correct position in the printer every time, eliminating text alignment and paper jamming issues.
• Built-in label editing software doesn't need installing. Simply click to run
• Download free P-touch Editor label design software to include barcodes, images and print from a database
• USB connectivity for quick and easy set-up
• Print in black and red without needing ink or toner up to 62mm

Reasons To Buy

The easy-to-use label printer

Developed for use in busy workplaces, this advanced label printer is easy to set-up and use. Using the same technology as USB pen drives, simply connect to your PC or Mac, and run the built-in software without the need to install printer drivers. For more labelling options, download the free P-touch Editor label design software and printer drivers to design and print fully customised labels containing text, frames, barcodes and images.

Black and red printing without ink

Brother DK label rolls are available in a range of traditional die-cut (pre-sized) labels, or continuous, that allows the built-in cutter to cut your label to the precise length (up to one metre). Plus, draw attention to important information by including red* on your labels too - ideal for highlighting use-by dates, allergens and other critical information.
*DK-22251 roll required

Large range of labels for any application

The QL series label printers use Brother DK rolls - that easily slot-in for fast label changes. Several types are available:

Pre-sized die-cut adhesive labels in paper and plastic film material.
Continuous adhesive labels in paper and plastic film material that can be cut to the length you need (up to 1 metre).
Non-adhesive card ideal for receipts and name badges.
Removable adhesive for repositioning labels.

Click and print from Microsoft Word/Excel/Outlook

The P-touch Editor add-in for Microsoft Office (Windows only) lets you print labels with the information you use every day, with just one click. Highlight your text, click the add-in, and the label is printed. Alternatively, text saved in an Excel or .csv file can be imported into P-touch Editor and merged with your label layout to print many labels with the same format (design). Ideal for printing address, product and pricing labels.

Description

The QL-800 is the perfect choice for office workers who need a reliable and fast address label printer. Quickly print labels from your PC or Mac with this high speed label printer. Thanks to the integrated P-touch Editor Lite label design software it is so easy to use - simply connect to your computer, click the icon to launch the software and design and print your labels. Or use the advanced P-touch Editor label design software to include barcodes, images, and other advanced functions. You're also able to produce labels with both black and red print without the need of ink or toner - ideal to highlight important information on a label. And the integrated cutter allows custom sized labels up to one metre in length when using one of the continuous label rolls.

Specifications

Printing
Rotated printing	Yes
Date & time printing	Yes
Minimum print length	100 cm
Text alignment	Right, Center, Left
Print technology	Direct thermal
Colour	Yes
Vertical printing	Yes
Printing colours	Black, Red
Print speed	148 mm/sec
Print speed	93 lpm
Maximum resolution	300 x 600 DPI
Maximum printing width	6.1 cm
Maximum print height	5.8 cm
Memory
Label memory	99 label(s)
Flash memory	6 MB
Paper handling
Maximum label width	6.2 cm
Maximum label length	1 m
Autocutter	Yes
Ports & interfaces
Wi-Fi	No
Ethernet LAN	No
USB 2.0 ports quantity	1
Connectivity technology	Wired
USB port	Yes
Performance
Languages support	Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Number of languages	18
Tape size detection	Yes
Tape type	DK
Number of styles	8
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN128, EAN13, EAN8, GS1-128, ISBN-2, ISBN-5, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	5
Flash memory	6 MB
Page description languages	Raster_P
Design
Housing material	Plastic
Product colour	Black, Grey
Built-in display	No
Power
Auto power off	Yes
AC input voltage	220 - 240 V
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Weight & dimensions
Package width	264 mm
Package depth	184 mm
Package height	232 mm
Width	262 mm
Depth	185 mm
Height	230 mm
Weight	2.01 kg
Package weight	2.37 kg
Packaging data
Package width	264 mm
Package depth	184 mm
Package height	232 mm
Package weight	2.37 kg
Packaging content
Cartridges quantity	2 pc(s)
Manual	Yes
Warranty card	Yes
Quick start guide	Yes
Drivers included	Yes
Cables included	USB
Bundled software	P-touch Editor Lite P-touch Editor 5 P-touch Address Book
AC adapter included	Yes
Cartridge(s) included	Yes
Other features
Products per pallet	108 pc(s)
Layers per pallet	6 pc(s)
Master (outer) cases per pallet	36 pc(s)
Date & time printing	Yes
Languages support	Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Number of languages	18
Label memory	99 label(s)
Number of frames	126
Country of origin	China
Spare part retention	5 year(s)
Logistics data
Pallet gross height	16.3 cm
Master (outer) cases per pallet layer	6 pc(s)
Pallet gross weight	284.4 kg
Products per pallet	108 pc(s)
Layers per pallet	6 pc(s)
Master (outer) cases per pallet	36 pc(s)
Harmonized System (HS) code	84433210
Technical details
PC connection	USB 2.0
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210
Pallet type	800 x 1200 mm
