Collection: PC/Workstation Barebones

Intel Core Ultra 5 125H, 2 x SO-DIMM DDR5, Intel Wi-Fi 6E AX211, 2.5G LAN, Bluetooth, 5.3

Key Features

• Performance: Delivers best-in-class performance among comparable mini-PC offerings
• Manageability: Most comprehensive mini-PC with Intel vPro® Enterprise for exceptional security, manageability, and stability
• AI Ready: Harnesses the prowess of Intel® Core™ Ultra processors’ three AI engines for high throughput, low power, and fast response
• Wi-Fi Sensing: Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
• Wireless Connectivity: Delivers seamless connectivity for certified Bluetooth® dongle-free experiences
• Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster

Description

Compact Power, Intelligent Performance

Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.

Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.

With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

ASUS NUC 14 Pro
Compact Power Intelligent Preference
ASUS NUC 14 Pro delivers best-in-class performance thanks to the all-new Intel® Core™ Ultra processor family. It is the most comprehensive mini-PC built with Intel vPro® Enterprise for exceptional security, manageability, and stability. With certified Bluetooth® dongle-free connectivity and three AI engines – GPU, NPU, and CPU – for high throughput, low power, and fast response, ASUS NUC 14 Pro delivers robust computing capabilities. It is equipped with Wi-Fi sensing for intelligent energy efficiency, and a “tried and trusted” 4x4-inch chassis designed for toolless access for easier, safer, and faster upgrades.

Compact Power, Intelligent Performance
ASUS NUC 14 Pro is ready to handle even the most demanding workloads. Its compact, less-than-one-liter chassis takes up minimal space on a desk or workstation. With fewer materials, less packaging, and less warehousing, ASUS NUC 14 Pro saves space and energy, and promotes sustainability.

Configured and tuned for optimal performance, ASUS NUC 14 Pro comes equipped with the latest Intel® Core™ Ultra processors*, Intel® Arc GPU*, Intel® AI Boost*(Intel’s newest NPU), and Intel vPro® Enterprise* to meet all compute needs.

*Select SKUs include Intel Core Ultra processors and Intel vPro technology

This Mini-PC Means Business
ASUS NUC 14 Pro Mini PCs, Kits, and Boards offer the perfect combination of size, performance, intelligence, and reliability to drive modern business. ASUS NUC 14 Pro is a versatile PC platform for commercial environments with a small form-factor, platform longevity, robustness, and storage and I/O expandability:

- Intel® Core™ Ultra 7, Intel Core Ultra 5, or Intel Core 3 processors
- Intel Arc™ graphics on specified SKUs
- Intel® AI Boost on specified SKUs (Intel’s newest NPU purpose-built to handle longer-running AI workloads at low power.)
- Dual-channel DDR5-5600 MHz SODIMMs (up to 96 GB)
- M.2 22x80 key M slot for PCIe x4 Gen 4 NVMe SSD; M.2 22x42 key M slot for PCIe x4 Gen 4; support for SATA 2.5-inch HDD (Tall kit)
- Intel Wi-Fi 6E AX211 supporting 802.11ax and Bluetooth® 5.3
- Intel i226 2.5 Gb Ethernet (i225-LM on vPro models; i226-V on non-vPro models)
- Extensive connectivity includes Thunderbolt™ 4, HDMI® 2.1, USB 3.2 Gen 2, and internal USB 2.0 headers

Overview
ASUS NUC 14 Pro provides comprehensive connectivity with multiple ports to support quad 4K displays and more. With a VESA mounting plate included and toolless chassis for easy upgrades, NUC 14 Pro is ideal for a range of use scenarios.

Why NUC 14 Pro?
ASUS NUC 14 Pro is compact, powerful, and reliable, offering unparalleled performance, exceptional security and manageability, AI readiness, Wi-Fi sensing, wireless connectivity, and customization to drive modern business, edge computing, and IoT use cases.

Specifications

Motherboard
Number of processors supported	1
Processor
Built-in processor	Yes
Processor model	125H
Processor boost frequency	4.5 GHz
Processor threads	18
Processor family	Intel Core Ultra 5
Processor cores	14
Number of processors supported	1
Processor manufacturer	Intel
Processor cache	18 MB
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.5 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.7 GHz
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache type	Smart Cache
Processor generation	Intel® Core™ Ultra (Series 1)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	5600 MHz
Memory channels	Dual-channel
Maximum internal memory	96 GB
Internal memory installed	No
Video
Graphics card family	Intel
On-board graphics card	Yes
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	PCI Express
NVMe	Yes
Storage drives installed	No
Graphics
Graphics card family	Intel
On-board graphics card	Yes
On-board graphics card model	Intel Arc Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth version	5.3
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Thunderbolt 4 ports quantity	2
USB4 Gen 2x2 ports quantity	1
Design
VESA mounting	Yes
Product type	Mini PC barebone
Cooling type	Active
Product colour	Black
Chassis type	UCFF
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Windows operating systems supported	Windows 11
Number of processors supported	1
Processor special features
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Colour
Product colour	Black
Technical details
Quick start guide	Yes
Cooling type	Active
Chassis type	UCFF
Cable lock slot type	Kensington
Cable lock slot	Yes
Packaging data
AC adapter included	Yes
Software
Windows operating systems supported	Windows 11
Power
Power supply type	External AC adapter
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	54 mm
Weight	750 g
Packaging content
Quick start guide	Yes
AC adapter included	Yes
Other features
Chassis type	UCFF

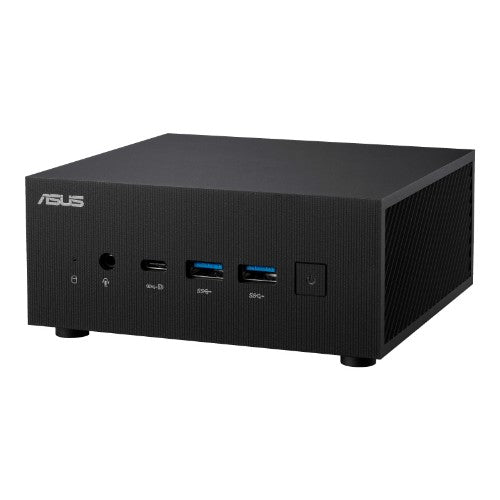

AMD Ryzen 7 7735HS, WiFi 6E, Bluetooth 5, Audio Chip, Black

Key Features

• Windows 11 Pro-ASUS recommends Windows 11 Pro for business
• Powered by the latest AMD Ryzen™ 7000 and 6000 Series Processor with Radeon™ graphics
• Quad-4K displays support and 8K UHD support**
• Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
• Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
• Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
• Onboard 2.5GbE LAN delivering faster Ethernet connectivity
• Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
• Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
• Configurable Ports support DP1.4/VGA/COM/HDMI options
• 24/7 reliability — Extensively tested to ensure long-term dependability

Description

Ultra-compact Mini PC provides flexible, comprehensive solutions

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 and 7000 Series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe®Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There’s also two ultrafast PCIe® Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

System & CPU Performance

PN53 delivers a system performance uplift of up to 10% better performance in daily multitask computing, comparing to previous generation - providing powerful computing capacity and enabling easy multitasking and smooth operation.

Graphics Performance

ExpertCenter PN53 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 55% in 3DMark Fire Strike and increasing 49% 3DMark Night Raid performance benchmarks.

Ultrafast PCIe® 4.0 SSD

PCIe 4.0 doubles the data transfer rate of the prior PCIe 3.0 standard. ExpertCenter PN53 support one PCIe Gen4 x4 SSD to deliver greater data performance and lower latency.

*Test model: ASUS Mini PC | SAMSUNG GXA7301Q vs. SAMSUNG EXD7201
*Actual performance may vary depending on objective environmental changes.
Versatile USB 4 Type-C*

Versatile USB 4 Type-C

Power Delivery
The Power Delivery (PD) function can either receive power from a supported display* or supply power to mobile devices.

Superfast data transfers
Experience up to 40 Gbps data transmission speeds with USB*

DisplayPort™
Enjoy up to 8K @ 30 Hz video output*.

* Power Delivery (PD) input only supported by the rear USB 4 port.
* Actual speed may vary depending on devices and applications

Faster and Better DDR5 RAM

ASUS ExpertCenter PN53 is powered by the new AMD 6000 Series CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN53 provides excellent performance for daily computing tasks.

4K Resolution & Quad Display Support

Integrated AMD Radeon 600M series graphics enable ExpertCenter PN53 to display stunning 4K UHD videos and imagery. With HDMI, USB-C DisplayPort and a configurable port that can be specified for video signal output, PN53 lets you extend your workspace across up to four displays.

4K Resolution & Quad Display Support
*Video playing or streaming in 4K or higher resolution requires dual channel memory configuration
*Configurable ports are confirmed SKU before configuring
*Actual resolution may vary depending on devices and application changes.
Ultra-realistic 8K Visuals

ExpertCenter PN53 supports stunning 8K UHD visuals via USB 4 or the configurable video output ports for detail four times greater than 4K, or a remarkable 16 times that of traditional FHD visuals. PN53 is capable of pumping out 8K imagery at 30 Hz via USB 4 or DisplayPort 1.4; or up to 60 Hz through HDMI 2.1* to bring images to life.

Exceptional Connection Experience – Wi-Fi 6 & Wi-Fi 6E*

The built-in WiFi 6 module allows ExpertCenter PN53 to deliver smooth high-resolution video streams, fewer dropped connections, and faster performance farther away from the router, even in dense environments. WiFi 6E is an expanded version of WiFi 6 to support high-speed 160 MHz channels.

And Wi-Fi 6E is the expanded version of Wi-Fi 6 to support extra high-speed 160MHz channels*.

Configurable Port

ExpterCenter PN53 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, for monitors or legacy devices such as barcode scanners or receipt printers.

*Configurable ports are confirmed SKU before configuring.

Superfast 2.5 Gbps Networking

2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Easy modification,
maximum possibilities

An optional multi-storage design that accommodates up to two PCIe Gen4 M.2 SSD and a 2.5-inch solid-state drives(SSD) or hard disk drives (HDD) for added storage flexibility.

Power Delivery (PD) – Input & Output

PD input lets the monitor* provide power to ExpertCenter PN53 via a single USB-C cable, allowing for a neater workstation. ExpertCenter PN53 is able to receive power and deliver a DisplayPort signal via this connection, and also supply power to charge mobile devices.

Extreme cooling

To unleash high-end performance in such a compact machine, ASUS designers and engineers fine-tuned every aspect of the ExpertCenter PN53’s cooling system. The self-cleaning fan module includes flat heat pipes that are connected to full-sized heatsinks and fan outlets. This comprehensive cooling solution enables the CPU to operate at optimum temperatures for stronger performance that lasts.

Extreme cooling
*All test data is according to ASUS testing result, comparing to early generation design.
*Actual performance may vary depending on objective environmental changes.
Anti-Dust Self-Cleaning System

The Anti-Dust Self-Cleaning System not only keeps the heatsinks clean, but also effectively ejects the dust and other particles to prolong the lifespan of the system. The fan is never overworked, so less noise is generated for a quieter workstation.

Enhanced Software - MyASUS

AI Noise Cancelation

Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.
AI Noise Cancelation
System Diagnosis

Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.
System Diagnosis
Smart Fan Control

Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.
Smart Fan Control
Other Functions

WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.

Specifications

Motherboard
Number of processors supported	1
Processor
L3 cache	16 MB
Built-in processor	Yes
Processor model	7735HS
Processor boost frequency	4.75 GHz
Processor threads	16
Processor family	AMD Ryzen™ 7
Processor cores	8
Processor frequency	3.2 GHz
Number of processors supported	1
L2 cache	4 MB
Processor manufacturer	AMD
Processor cache	20 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800 MHz
Maximum internal memory	32 GB
Video
Graphics card family	AMD
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
Graphics
Graphics card family	AMD
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 660M
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC897
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Realtek RTL8125B-CG
Bluetooth version	5.0
Bluetooth	Yes
Copper ethernet cabling technology	2500BASE-T
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
USB4 Gen 2x2 ports quantity	2
Design
Product type	Mini PC barebone
On/off switch	Yes
Cooling type	Active
Product colour	Black
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Number of processors supported	1
Audio chip	Realtek ALC897
Colour
Product colour	Black
Technical details
Cooling type	Active
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
Power supply type	External AC adapter
Weight & dimensions
Width	120 mm
Depth	130 mm
Height	58 mm
Weight	900 g
Other features
Chassis type	0.92L sized PC

Intel N97 (6M Cache, up to 3.60 GHz), Intel UHD Graphics, WiFi 6e, no OS, 1 x SO-DIMM, Realtek Ethernet Controller RTL8125BG-CG, 2.5G

Key Features

• Energy-efficient: Ideal for lightweight office productivity and embedded applications
• Triple display support: Boosting Office Workflow Efficiency
• Easy access design: Ease of upgrades, lower maintenance costs and reduced downtime
• Multiple high-speed connection options: Experience heightened productivity with a diverse array of high-speed connectivity options, ensuring accelerated and stable data transfers
• Abundant I/O: High flexibility to meet various workflow and scenarios
• Compact size: Easy to deploy for small offices, retail settings, educational institutions

Description

Power efficient Mini PC powered by Intel® Core™ N-Series processor, featuring triple 4K display supports and easy access design, perfect for education and office tasks

Efficient Performance. Smart Savings.
ASUS NUC 14 Essential is the next-generation mini PC that takes performance, portability, and versatility to greater heights. Powered by the latest energy-efficient Intel® Core™ N-series processors and equipped with diverse connectivity options, this sleek, compact device is built to boost productivity and makes light work of diverse applications.

Specifications

Processor
Built-in processor	Yes
Processor model	N97
Processor boost frequency	3.6 GHz
Processor cores	4
Processor manufacturer	Intel
Processor cache	6 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	1
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800 MHz
Maximum internal memory	16 GB
Video
Graphics card family	Intel
On-board graphics card	Yes
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	M.2
Number of storage drives supported	1
Maximum storage capacity	2 TB
SSD form factor	M.2
Graphics
Graphics card family	Intel
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics
Discrete graphics card model	Not available
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Dragon RTL8125BG
Bluetooth version	5.3
Bluetooth	Yes
Copper ethernet cabling technology	2.5GBASE-T
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DC-in jack	Yes
Design
VESA mounting	Yes
Product type	Mini PC barebone
On/off switch	Yes
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
AC adapter output voltage	19 V
AC adapter output current	3.42 A
Power supply type	External AC adapter
Power supply	65 W
Weight & dimensions
Width	135 mm
Depth	115 mm
Height	36 mm
Weight	470 g

AMD Ryzen 5 7535HS, WiFi 6E, Bluetooth 5, Audio Chip, Black

Key Features

• Windows 11 Pro-ASUS recommends Windows 11 Pro for business
• Powered by the latest AMD Ryzen™ 7000 and 6000 Series Processor with Radeon™ graphics
• Quad-4K displays support and 8K UHD support**
• Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
• Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
• Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
• Onboard 2.5GbE LAN delivering faster Ethernet connectivity
• Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
• Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
• Configurable Ports support DP1.4/VGA/COM/HDMI options
• 24/7 reliability — Extensively tested to ensure long-term dependability

Description

Ultra-compact Mini PC provides flexible, comprehensive solutions

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 and 7000 Series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe®Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There’s also two ultrafast PCIe® Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.

System & CPU Performance

PN53 delivers a system performance uplift of up to 10% better performance in daily multitask computing, comparing to previous generation - providing powerful computing capacity and enabling easy multitasking and smooth operation.

Graphics Performance

ExpertCenter PN53 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 55% in 3DMark Fire Strike and increasing 49% 3DMark Night Raid performance benchmarks.

Ultrafast PCIe® 4.0 SSD

PCIe 4.0 doubles the data transfer rate of the prior PCIe 3.0 standard. ExpertCenter PN53 support one PCIe Gen4 x4 SSD to deliver greater data performance and lower latency.

*Test model: ASUS Mini PC | SAMSUNG GXA7301Q vs. SAMSUNG EXD7201
*Actual performance may vary depending on objective environmental changes.
Versatile USB 4 Type-C*

Versatile USB 4 Type-C

Power Delivery
The Power Delivery (PD) function can either receive power from a supported display* or supply power to mobile devices.

Superfast data transfers
Experience up to 40 Gbps data transmission speeds with USB*

DisplayPort™
Enjoy up to 8K @ 30 Hz video output*.

* Power Delivery (PD) input only supported by the rear USB 4 port.
* Actual speed may vary depending on devices and applications

Faster and Better DDR5 RAM

ASUS ExpertCenter PN53 is powered by the new AMD 6000 Series CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN53 provides excellent performance for daily computing tasks.

4K Resolution & Quad Display Support

Integrated AMD Radeon 600M series graphics enable ExpertCenter PN53 to display stunning 4K UHD videos and imagery. With HDMI, USB-C DisplayPort and a configurable port that can be specified for video signal output, PN53 lets you extend your workspace across up to four displays.

4K Resolution & Quad Display Support
*Video playing or streaming in 4K or higher resolution requires dual channel memory configuration
*Configurable ports are confirmed SKU before configuring
*Actual resolution may vary depending on devices and application changes.
Ultra-realistic 8K Visuals

ExpertCenter PN53 supports stunning 8K UHD visuals via USB 4 or the configurable video output ports for detail four times greater than 4K, or a remarkable 16 times that of traditional FHD visuals. PN53 is capable of pumping out 8K imagery at 30 Hz via USB 4 or DisplayPort 1.4; or up to 60 Hz through HDMI 2.1* to bring images to life.

Exceptional Connection Experience – Wi-Fi 6 & Wi-Fi 6E*

The built-in WiFi 6 module allows ExpertCenter PN53 to deliver smooth high-resolution video streams, fewer dropped connections, and faster performance farther away from the router, even in dense environments. WiFi 6E is an expanded version of WiFi 6 to support high-speed 160 MHz channels.

And Wi-Fi 6E is the expanded version of Wi-Fi 6 to support extra high-speed 160MHz channels*.

Configurable Port

ExpterCenter PN53 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, for monitors or legacy devices such as barcode scanners or receipt printers.

*Configurable ports are confirmed SKU before configuring.

Superfast 2.5 Gbps Networking

2.5 Gb Ethernet provides superfast networking and data transfer speeds for efficient, productive multitasking.

Easy modification,
maximum possibilities

An optional multi-storage design that accommodates up to two PCIe Gen4 M.2 SSD and a 2.5-inch solid-state drives(SSD) or hard disk drives (HDD) for added storage flexibility.

Power Delivery (PD) – Input & Output

PD input lets the monitor* provide power to ExpertCenter PN53 via a single USB-C cable, allowing for a neater workstation. ExpertCenter PN53 is able to receive power and deliver a DisplayPort signal via this connection, and also supply power to charge mobile devices.

Extreme cooling

To unleash high-end performance in such a compact machine, ASUS designers and engineers fine-tuned every aspect of the ExpertCenter PN53’s cooling system. The self-cleaning fan module includes flat heat pipes that are connected to full-sized heatsinks and fan outlets. This comprehensive cooling solution enables the CPU to operate at optimum temperatures for stronger performance that lasts.

Extreme cooling
*All test data is according to ASUS testing result, comparing to early generation design.
*Actual performance may vary depending on objective environmental changes.
Anti-Dust Self-Cleaning System

The Anti-Dust Self-Cleaning System not only keeps the heatsinks clean, but also effectively ejects the dust and other particles to prolong the lifespan of the system. The fan is never overworked, so less noise is generated for a quieter workstation.

Enhanced Software - MyASUS

AI Noise Cancelation

Two-Way AI Noise Cancelation
Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.
AI Noise Cancelation
System Diagnosis

Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.
System Diagnosis
Smart Fan Control

Performance & Quiet modes
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.
Smart Fan Control
Other Functions

WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.

Specifications

Motherboard
Number of processors supported	1
Processor
L3 cache	16 MB
Built-in processor	Yes
Processor model	7535HS
Processor boost frequency	4.55 GHz
Processor threads	12
Processor family	AMD Ryzen™ 5
Processor cores	6
Processor frequency	3.3 GHz
Number of processors supported	1
L2 cache	3 MB
Processor manufacturer	AMD
Processor cache	19 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	4800 MHz
Maximum internal memory	32 GB
Video
Graphics card family	AMD
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
Graphics
Graphics card family	AMD
On-board graphics card	Yes
On-board graphics card model	AMD Radeon 660M
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC897
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Realtek RTL8125B-CG
Bluetooth version	5.0
Bluetooth	Yes
Copper ethernet cabling technology	2500BASE-T
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
USB4 Gen 2x2 ports quantity	2
Design
Product type	Mini PC barebone
On/off switch	Yes
Cooling type	Active
Product colour	Black
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Number of processors supported	1
Audio chip	Realtek ALC897
Colour
Product colour	Black
Technical details
Cooling type	Active
Chassis type	0.92L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Management features
On/off switch	Yes
Power
Power supply type	External AC adapter
Weight & dimensions
Width	120 mm
Depth	130 mm
Height	58 mm
Weight	900 g
Other features
Chassis type	0.92L sized PC
