Collection: Laptop Docks & Port Replicators

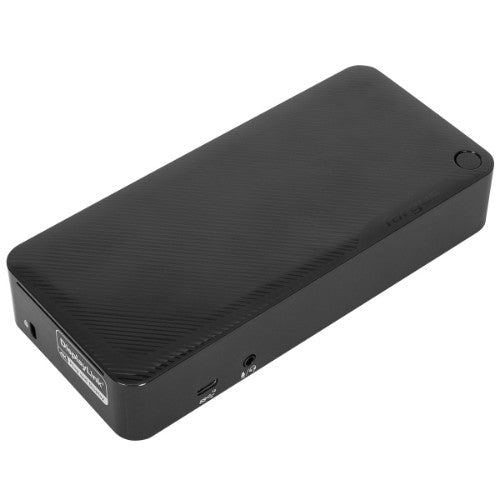

4K UHD @ 60 Hz, USB Type-C, USB, Ethernet, 3.5 mm, DisplayPort

Key Features

• Supports single and dual 4K UHD @ 60 Hz video via two DisplayPort™ 1.2a ports or HDMI 2.0 ports
• Power Delivery 3.0 up to 100W for USB-C hosts
• 1 USB 3.2 Gen 2 Type-C (10 Gbps) port
• 4 USB 3.2 Gen 1 Type-A ports (1 fast charging)
• 1 Gigabit Ethernet port
• 1 3.5mm combo Audio In/Out port
• Integrated lock slot accommodates standard security locks to safeguard equipment
• 1M USB-C detachable host cable (C/M to C/M) with (C/F to A/M) tethered adapter
• Compatible with Targus VESA® Mounting Bracket (ACX003GLZ, sold separately)

Description

Expand your workstation and connect to virtually any laptop with the Universal USB-C® DV4K Docking Station with 100W Power. Designed to support and power a wide variety of USB-C laptops and operating systems, including Windows®, macOS®, Android™, ChromeOS™, and Ubuntu®, this patented dock packs all of the ports and power you need.

Enjoy sharp 4K video while supporting a connection up to two monitors with its two HDMI and two DisplayPort™ connections. Plus connect all your favorite accessories – like a mouse, keyboard, hard drive, and more – with a combination of USB-A (4x USB 3.2 Gen 1 Type-A ports) and USB-C (1x 3.2 Gen 2 Type-C), plus Ethernet and audio ports.

Designed for the modern workstation, the dock comes equipped with a VESA® bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings.

Supports Dual DisplayPort™ and HDMI Monitors
The USB-C® Universal DV4K Docking Station with 100W Power is Thunderbolt™ 3 compatible, but that’s only the beginning. Enjoy two DisplayPort™ or two HDMI ports (or a mix of the two) with your dual display and create a picture-perfect image at 4K Ultra HD. Compare photos, documents, spreadsheets for work, or browse email with ease from screen to screen. Enjoy unbeatable compatibility all in one place using a single docking station with power.

All About the Ports
With one USB 3.2 Gen 2 Type-C port and four USB 3.2 Gen 1 Type-A ports, it’s simple to connect the latest keyboards, exterior drives, and other peripherals to customize your workspace experience. The dock also includes a fast-charging port for charging your smartphone, tablet, or other devices.

Innovative Design
Compact and sleek, this patented dock is a sure fit for shrinking desktops and tight spaces. The dock is also equipped with a VESA® bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	1.4b
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
DisplayPort version	1.2a
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Country of origin	Thailand
Card reader integrated	No
Cable lock slot	Yes
Certification	CE, FCC, RoHS
Cable lock slot type	Kensington
HD type	4K Ultra HD
VESA mounting	Yes
Maximum refresh rate	60 Hz
Storage
Card reader integrated	No
Power
Power source type	DC
Output voltage	19 V
Output current	7.89 A
Power supply	150 W
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android
Weight & dimensions
Width	82.6 mm
Depth	31.8 mm
Height	179.3 mm
Weight	340 g
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black
Country of origin	Thailand
Cable lock slot	Yes
Certification	CE, FCC, RoHS
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Quick start guide	Yes
Cables included	AC, USB Type-A to USB Type-C
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	RoHS

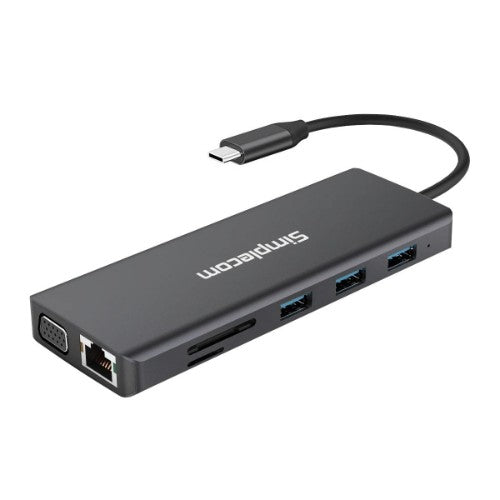

USB-C, 12-in-1, VGA, LAN, SD, MicroSD, 4xUSB-A, 3.5 Audio, 2xHDMI, USB-C Power Delivery (100W), 120x55x16 mm, 100 g

Key Features

• Powerful 12-in-1 USB-C multiport adapter for comprehensive expansion to your laptop
• USB-A ports support up to 5Gbps transfer rate following USB 3.2 Gen 1 specification
• Dual HDMI plus VGA, triple video outputs with MST Support
• Support single HDMI up to 4K@30Hz and dual HDMI up to 1080p@60Hz
• Support Mirror or Extended mode (maximum 2 extended mode displays)
• Gigabit Ethernet support connection speeds of up to 1000Mbps
• 2 Slot Card reader for SD and microSD memory cards
• USB-C PD port for charging the laptop with up to 100W of power
• 3.5mm audio jack for easy connection of headphones or speakers
• Durable & stylish aluminium alloy housing
• Lightweight, easy to carry along when travelling
• Plug & play, no driver software required

Description

CHN612 is a 12-in-1 USB-C multiport adapter with dual HDMI + VGA triple video outputs. It turns a single USB-C port into 12 ports, including 4 USB-A ports, 2 card reader slots, dual HDMI, VGA, Gigabit Ethernet, 3.5" audio jack and 100W PD charging.

If you need to connect with various devices to your laptop at same time, CHN612 is a comprehensive connectivity solu­­­­­­­­­­tion that helps you do more with the devices you already have to increase productivity and convenience.

12-in-1 Massive USB-C Docking Station

A powerful all-in-one USB-C docking station with dual HDMI, VGA outputs, 100W PD charging port, Gigabit Ethernet Port, SD/MicroSD Card reader, 3.5mm audio output and 4 port USB hub (3x SuperSpeed 5Gbps USB ports and 1x HiSpeed 480Mbps USB port)

Triple Video Outputs with MST Support

This multiport adapter offers one VGA output and dual HDMI outputs. It allows you to connect 3 screens simultaneously, and supports up to 2 extended screens with MST support. Connecting single HDMI supports up to 4K@30Hz and dual HDMI supports up to 1080p@60Hz on each external monitor (Please note MST is for Windows system only, MacOS doesn't support MST)

SuperSpeed USB Hub with SD/MicroSD Card Reader

3x USB-A port with a maximum transfer speed up to 5Gbps. It allows you to connect USB Storage Drive, keyboard, mouse, thumb drive or other USB devices.

100W USB-C Power Delivery

The USB-C PD Port can charge your connected device while other ports are working. The USB-C port supports PD2.0 and up to 100W Power Delivery charging.

Gigabit Ethernet

Connect to the network instantly and enjoy stable connection speeds of up to 1000Mbps, Avoid the latency and interference issues for a more consistent, reliable experience when streaming or downloading.

Stylish and Durable Aluminium Alloy Casing

This USB-C multiport adapter comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work. Its compact design makes it perfect for travelling.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 2.0 ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Number of displays supported	3
Product colour	Black
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Plug and Play	Yes
LED indicators	Power
Housing material	Aluminium
Hub interfaces	HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C, VGA
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Width	55 mm
Depth	120 mm
Height	16 mm
Weight	100 g
Design
Product colour	Black
LED indicators	Power
Other features
Cable length	0.15 m

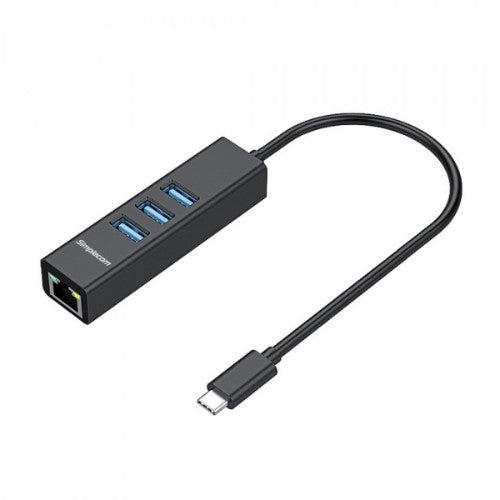

Aluminium USB-C to 3 Port USB HUB with Gigabit Ethernet Adapter

Key Features

• Expands single USB-C port to three USB-A ports and a RJ45 Gigabit Ethernet port
• Aluminium unibody, durable and premium quality
• 3 SuperSpeed USB ports support speeds of up to 5Gbps
• Built-in Gigabit Ethernet supports up to 1000Mbps transfer speed
• LED indicator for power and network connection status
• USB powered, no external power required
• Easy to Install, plug and play, no additional driver needed
• Ideal for Chromebooks, Ultrabooks without Ethernet port
• Support Windows 7 and above (32/64-bit), Mac OS 10.6 and above

Description

CHN421 is an essential companion for PC or laptop with not enough typical USB-A ports or lack of RJ45 Ethernet port, it turn a single SuperSpeed USB-C port into three USB-A port and one Gigabit Ethernet port. Simply connect the hub to the USB-C port on a laptop or PC, then benefit from more USB-A ports and one Gigabit Ethernet port, which makes it possible for computers without an Ethernet port to connect cable network. Access and transfer data more efficiently. Three SuperSpeed USB ports support data transfer rates of up to 5Gbps, and RJ45 Gigabit Ethernet port supports up to 1000Mbps transfer speed. CHN421 is sturdy and durable with premium aluminium body. Simple and easy to use with 3 USB ports on the top and an innovative built-in RJ45 Gigabit Ethernet adapter on the end, accommodate your collection of USB device without cluttering your desk space.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Plug and Play	Yes
Housing material	Aluminium
Hub interfaces	RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Power
Power supply type	USB
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Width	24 mm
Depth	87 mm
Height	17 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Quantity per pack	1 pc(s)
Other features
Power supply type	USB

ThinkPad Thunderbolt 4 Workstation Dock

Key Features

• The ThinkPad Thunderbolt™ 4 Workstation Dock supports upto 230W PD
• Single 8K@30Hz or upto 4 4K@60HZ display support
• Silent firmware upgrades, vPro/AMT Pass through support, and
• Data transfer rates upto 40 Gbps; (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)

Description

Premium Thunderbolt™ 4 Docking Experience: ThinkPad Thunderbolt 4 Workstation Dock delivers reliable and consistent industry leading video, data and power connectivity; Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, Upto 230W Power Delivery to Workstation, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps.; The ThinkPad Thunderbolt 4 Workstation Dock is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
Connectivity technology	Wired
USB 2.0 ports quantity	0
Host interface	Thunderbolt 4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	230 W
DisplayPort version	1.4
Thunderbolt 4 ports quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	4
Product colour	Black, Red
Card reader integrated	No
Cable lock slot	Yes
Built-in speaker(s)	No
LED indicators	Yes
Data transfer rate	40 Gbit/s
Certification	cULus, FCC, ICES, NOM
Cable lock slot type	Kensington
HD type	8K Ultra HD
VESA mounting	Yes
Maximum refresh rate	30 Hz
Audio
Built-in speaker(s)	No
Storage
Card reader integrated	No
Multimedia
Built-in speaker(s)	No
Power
Power source type	AC
Power consumption (max)	230 W
Output voltage	20 V
Output current	15 A
Power supply	300 W
Software
Windows operating systems supported	Windows 10
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	220 mm
Depth	80 mm
Height	30 mm
Weight	450 g
Package width	270 mm
Package depth	195 mm
Package height	85 mm
Package weight	1.9 kg
Design
Windows operating systems supported	Windows 10
Product colour	Black, Red
Cable lock slot	Yes
LED indicators	Yes
Certification	cULus, FCC, ICES, NOM
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Package width	270 mm
Package depth	195 mm
Package height	85 mm
Package weight	1.9 kg
Packaging content
Manual	Yes
Cables included	AC
AC adapter included	Yes
Warranty card	Yes
Quantity per pack	1 pc(s)

2 x DisplayPort, 1 x HDMI, 3 x USB 3.1, 2 x USB 2.0, 1 x USB Type C, 1 x Gigabit LAN, 90W

Description

The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks, Automated firmware updates, Next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industray standard Notebooks.

One Dock. No Limits.
Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.

One Cable. No Hassle.
With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.

Entire Fleet. One Manager.
The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support tranditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Connectivity technology	Wired
USB 2.0 ports quantity	2
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Product colour	Black
On/off switch	Yes
Card reader integrated	No
Cable lock slot	Yes
Certification	FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Cable lock slot type	Kensington
HD type	4K Ultra HD
Storage
Card reader integrated	No
Power
Power source type	USB
Power connector	USB Type-C
Power supply	90 W
Software
Windows operating systems supported	Windows 10, Windows 7
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 95%
Weight & dimensions
Width	171 mm
Depth	80 mm
Height	30.8 mm
Weight	340 g
Package width	210 mm
Package depth	158 mm
Package height	75 mm
Package weight	955 g
Design
Windows operating systems supported	Windows 10, Windows 7
Product colour	Black
Cable lock slot	Yes
Certification	FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Package width	210 mm
Package depth	158 mm
Package height	75 mm
Package weight	955 g
Packaging content
Cables included	USB Type-C
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	CE

Thunderbolt 4, 8K, 40Gbps

Description

Enterprise-Grade Universal Thunderbolt™ 4 Docking Experience: ThinkPad Universal Thunderbolt 4 Dock delivers reliable and consistent industry leading video, data and power connectivity in a Windows based mixed-PC environment. Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps. The ThinkPad Universal Thunderbolt 4 is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.

The ThinkPad Universal Thunderbolt™ 4 Dock supports upto 100W PD, Single 8K@30Hz or upto 4 4K@60HZ display support, silent firmware upgrades, vPro/AMT Pass through support, and data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Connectivity technology	Wired
Host interface	Thunderbolt 4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Headphone connectivity	3.5 mm
DC-in jack	Yes
DisplayPort version	1.4
Thunderbolt 4 ports quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Certification	cULus, FCC, ICES, NOM
Power
Power source type	DC
Input current	6.75 A
Power consumption (max)	100 W
Power supply	135 W
Software
Windows operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	220 mm
Depth	80 mm
Height	30 mm
Weight	450 g
Package width	270 mm
Package depth	195 mm
Package height	85 mm
Package weight	1.2 kg
Design
Windows operating systems supported	Yes
Product colour	Black
Certification	cULus, FCC, ICES, NOM
Packaging data
Package width	270 mm
Package depth	195 mm
Package height	85 mm
Package weight	1.2 kg
Packaging content
AC adapter included	Yes

USB-C/A Universal Dock G2

Key Features

• Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-A-, USB-C™-, and Thunderbolt™-enabled notebooks.^[1]
• Add your accessories and up to three 4K displays^[3] to the dock. Then simply connect it to your notebook^[1] through a single USB-C™ cable to access your devices and charge your PC.
• Use the included USB-A Adapter to connect your USB notebook to the dock and access your accessories and up to two 4K displays.^[4] Use the optional HP 4.5 mm and USB-C Dock Adapter G2^[5] for legacy device barrel charging.
• Help IT secure and remotely manage your deployed commercial HP notebooks^[1] and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.
• Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.
• Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool.^[6]
• Updating your dock fleet has never been easier. IT can save time by pushing dock firmware updates to managed notebooks for later installation on the dock, even when they’re disconnected from each other.^[7]

Reasons To Buy

Single-cable solution

Add your accessories and up to three 4K displays^[3] to the dock. Then simply connect it to your notebook^[1] through a single USB-C™ cable to access your devices and charge your PC.

Future-proof your fleet

Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-A-, USB-C™-, and Thunderbolt™-enabled notebooks.^[1]

Backward compatibility

Use the included USB-A Adapter to connect your USB notebook to the dock and access your accessories and up to two 4K displays.^[4] Use the optional HP 4.5 mm and USB-C Dock Adapter G2^[5] for legacy device barrel charging.

Description

Universal docking for legacy and current notebooks
Get to work fast with one cable from your USB-A- and USB-C™-enabled notebooks^[1] to your displays, devices, and wired network with the flexible, compact HP USB-C/A Universal Dock G2. The dock is driven by DisplayLink and compatible with notebooks from HP, Apple, Dell, Lenovo, and more.^[2]

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Connectivity technology	Wired
USB 2.0 ports quantity	0
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Country of origin	China, Thailand, Taiwan
Card reader integrated	No
Compatibility	Compatible with HP ProBook 450 G7 Notebook PC; HP ProBook 440 G7 Notebook PC; HP ProBook 430 G7 Notebook PC; HP ZHAN 66 Pro 14 G3 Notebook PC; HP ZHAN 66 Pro 15 G3 Notebook PC; HP ProBook 450 G6 Notebook PC; HP ProBook 440 G6 Notebook PC; HP ProBook 430 G6 Notebook PC; HP ProBook x360 440 G1 Notebook PC; HP ProBook 445R G6 Notebook PC; HP ProBook 455R G6 Notebook PC; HP ProBook 445 G6 Notebook PC; HP ProBook 455 G6 Notebook PC; HP ProBook 470 G5 Notebook PC; HP ProBook 450 G5 Notebook PC; HP ProBook 440 G5 Notebook PC; HP ProBook 430 G5 Notebook PC; HP ProBook 455 G5 Notebook PC; HP ProBook 640 G5 Notebook PC; HP ProBook 650 G5 Notebook PC; HP ProBook 640 G4 Notebook PC; HP ProBook 650 G4 Hex Core Notebook PC; HP ProBook 650 G4 Notebook PC; HP ProBook 645 G4 Notebook PCHP Pro x2 612 G2; HP EliteBook 840 G6 Healthcare Edition Notebook PC; HP EliteBook 840 G5 Healthcare Edition Notebook PC; HP Elite Dragonfly Notebook PC; HP EliteBook x360 1040 G6 Notebook PC; HP EliteBook x360 1030 G4 Notebook PC; HP EliteBook x360 1040 G5 Notebook PC; HP Elite x2 G4; HP EliteBook x360 1030 G2 Notebook PC; HP EliteBook x360 1020 G2 Notebook PC; HP EliteBook x360 830 G6 Notebook PC; HP EliteBook x360 830 G5 Notebook PC; HP EliteBook 830 G6 Notebook PC; HP EliteBook 836 G6 Notebook PC; HP EliteBook 840 G6 Notebook PC; HP EliteBook 850 G6 Notebook PC; HP EliteBook 745 G6 Notebook PC; HP EliteBook 745 G5 Notebook PC; HP EliteBook 755 G5 Notebook PC; HP EliteBook 840 G5 Notebook PC; HP EliteBook 850 G5 Notebook PC; HP EliteBook 840r G4 Notebook PC; HP EliteBook 830 G5 Notebook PC; HP EliteBook 735 G6 Notebook PC; HP EliteBook 735 G5 Notebook PC; HP ZBook 14u G6 Mobile Workstation; HP ZBook 15u G6 Mobile Workstation; HP ZBook 15 G6 Mobile Workstation; HP ZBook 15 G5 Mobile Workstation; HP ZBook 17 G6 Mobile Workstation; HP ZBook 17 G5 Mobile Workstation; HP ZBook 14u G5 Mobile Workstation; HP ZBook 15u G5 Mobile Workstation; HP EliteBook 1050 G1 Notebook PC; HP ZBook Studio G5 Mobile Workstation; HP ZBook x2 G4 Detachable Workstation; HP ZBook Studio x360 G5 Convertible Workstation; HP Chromebook x360 14 G1; HP Chromebook x360 11 G2 EE; HP Chromebook 14A G5; HP ProBook 430 G4 Notebook PC; HP EliteBook 840 G7 Notebook PC; HP EliteBook 840 G8 Notebook PC; HP EliteBook 850 G7 Notebook PC
Cable lock slot	Yes
HP segment	Business
Colour name	Black
Storage
Card reader integrated	No
Power
Power source type	USB
Output voltage	20 V
Output current	5 A
Power supply	100 W
Software
Windows operating systems supported	Windows 7, Windows 10
Mac operating systems supported	MacOS
Linux operating systems supported	Ubuntu 18.04 LTS
Other operating systems supported	ChromeOS
Weight & dimensions
Width	122 mm
Depth	122 mm
Height	45 mm
Weight	695 g
Design
Windows operating systems supported	Windows 7, Windows 10
Mac operating systems supported	MacOS
Product colour	Black
Country of origin	China, Thailand, Taiwan
Cable lock slot	Yes
Brand-specific features
HP GTIN (EAN/UPC)	193905208715, 193905208760
HP GTIN (EAN/UPC) with options	(ABB) 193905208715; (ABU) 193905208760
Carbon footprint
Total carbon footprint (kg of CO2e)	10
Total carbon emissions, w/o use phase (kg of CO2e)	2
Carbon emissions, manufacturing (kg of CO2e)	7
Carbon emissions, logistics (kg of CO2e)	0.3
Carbon emissions, end-of-life (kg of CO2e)	0.1
Technical details
Box contents	HP USB-C/A Universal Dock G2; Documentation
Harmonized System (HS) code	84733020
Total carbon footprint (kg of CO2e)	10
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
HP GTIN (EAN/UPC)	193905208715, 193905208760
HP GTIN (EAN/UPC) with options	(ABB) 193905208715; (ABU) 193905208760
Special features	4K capability
Logistics data
Harmonized System (HS) code	84733020
Other features
Compatible operating systems	Windows 7; Windows 10; Chrome™ OS; MacOS; Ubuntu Linux v18.04
UNSPSC-code	43211612
Special features	4K capability

ThinkPad Hybrid USB-C with USB-A Dock

Description

The ThinkPad Hybrid USB-C with USB-A Dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. It features enterprise-class manageability like PXE boot and MAC address pass-through. The ThinkPad Hybrid USB-C with USB-A Dock offers three high-speed USB 3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. With the included USB-C to USB-A adaptor, it can also provide port replication to non-Lenovo or non-USB-C notebooks.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Connectivity technology	Wired
USB 2.0 ports quantity	2
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Card reader integrated	No
Brand compatibility	Lenovo
Compatibility	E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260
Storage
Card reader integrated	No
Power
Power source type	DC
Power supply	135 W
Weight & dimensions
Width	210 mm
Depth	80 mm
Height	30 mm
Design
Product colour	Black
Packaging content
Cables included	USB
AC adapter included	Yes
