Collection: Products

EHS62 Wireless Headset Adapter

Key Features

• Support Yealink wireless headset only
• Perfectly compatible with Cisco/Avaya/Poly/Grandstream/Mitel/Unify/Yealink T2X/T4XG desk phones
• Control phone through wireless headset
• Plug and play
• Easy to use

Description

The advanced Yealink Headset Adapter EHS62 provides a technical interface between your Yealink DECT Headset and a compatible desk phone(Cisco/Avaya/Poly/Grandstream/Mitel/Unify/Yealink T2X/T4XG). The unit is easy to install. Its plug-and-play effectively gives you the ability to remotely control your phone calls, including answering, hanging up, and adjusting the volume.
It has been specially designed to ensure maximum productivity in business applications such as receptions and call centers and is ideal for the Corporate, Financial, Health, Government, Educational, Industrial, and SME/SoHo market sectors.

Specifications

Features
Product type	EHS adapter
Brand compatibility	Yealink
Product colour	Black
Compatibility	WH64/WH63 E2/WH68 Cisco/Avaya/Poly/Grandstream/Mitel/Unify/Yealink T2X/T4XG IP Phone
Packaging data
Package width	395 mm
Package depth	215 mm
Package height	255 mm
Packaging content
User guide	Yes

MCore Pro, i5-1145G7E, 8GB(2*4GB) DDR4, 128GB SSD, Bluetooth: BT 5.2

Key Features

• Intel Core 11th i5 processor
• 3 x HDMI out
• Support TPM 2.0
• Support vPro Platform*
• Support CEC
• Built-in security slot

Description

A mini-PC designed specifically for video conference room systems
Yealink MCore Pro is a Mini-PC specially designed for Yealink conference room systems. It uses the Intel Core 11th generation i5 processor with excellent performance, providing powerful data processing capabilities for conference room systems. MCore Pro has three built-in HDMI video output interfaces, which support the simultaneousdisplay of three screens to provide a diverse video conferencing experience. Use the TPM 2.0 with the Intel vPro Platform* to keep your data secure. The automatic wake-up screen feature supported by CEC allows you to enjoy the convenient experience by one touch. In addition, the built-in security slot of the MCore Pro can provide you with a simple and reliable deployment experience.

*vPro Platform is only supported when using Intel i5-1145G7E

Specifications

Processor
Processor generation	11th gen Intel® Core™ i5
Processor cache type	Smart Cache
Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-1145G7E
Processor cores	4
Processor boost frequency	4.1 GHz
Processor cache	8 MB
Processor threads	8
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 4 GB
Storage
Total storage capacity	128 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	128 GB
Total SSDs capacity	128 GB
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Iris Xe Graphics
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	3
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Design
Product colour	Black
Chassis type	Mini PC
Cable lock slot	Yes
Performance
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
BIOS type	UEFI
Software
Operating system installed	Windows 11 IoT Enterprise
Power
Power supply input voltage	19 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Width	168 mm
Depth	197 mm
Height	39 mm
Weight	690 g
Package width	203 mm
Package depth	265 mm
Package height	148 mm
Package weight	1.43 kg
Packaging data
Package width	203 mm
Package depth	265 mm
Package height	148 mm
Package weight	1.43 kg
Packaging content
Display included	No
Cables included	HDMI
Other features
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes

100 Hz-8 kHz, -44.0 dB, 93 dB, 10 mW, 1.2 m

Description

Simple and Flexible Connectivity

Runs right out of box, a USB plug-and-play setup makes the connectivity to PC. You
can enjoy a reliable call experience with soft clients. Perfect match with Yealink IP
phones give you optimized audio quality.

Ultra-lightweight, All Day Wearing Comfort

Built for comfort with soft ear cushions and ultra-lightweight materials, the UH34/
UH34 Lite is 10%~30%* lighter than other headsets in the same range. Its ergonomic design makes this headset comfortable enough for long conference calls and
all day use. (* Test data provided by Yealink Lab)

Unparallel Audio Experience

Made for calls and music, UH34/UH34 Lite is kitted out with a high signal-to-noise
ratio speaker and independent cavity design. The passive noise cancellation creates a richer and clearer conversations with reduced background noise.

Intutive Controller

The hand-held controller with LED indicator provides easier access to key call control capabilities, including answer call, end call, reject call, and mute/unmute.

Specifications

Performance
Product type	Headset
Recommended usage	Calls/Music
Headset type	Monaural
Wearing style	Head-band
Product colour	Black
Cable length	1.2 m
Operating keys	Answer/end call, Reject call
Ports & interfaces
Connectivity technology	Wired
3.5 mm connector	Yes
USB connectivity	Yes
USB connector	USB Type-C
Headphones
Maximum input power	10 mW
Ear coupling	Supraaural
Headphone frequency	20 - 20000 Hz
Impedance	32 Ω
Headphone sensitivity	93 dB
Microphone
Microphone type	Boom
Microphone direction type	Unidirectional
Microphone frequency	100 - 8000 Hz
Microphone sensitivity	-44 dB
Microphone mute	Yes
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Weight & dimensions
Weight	88 g

DECT Dongle WDD60

Description

Yealink WDD60, it is DECT Dongle for use with WH6x Wireless Headsets.

You only need to use the DECT Dongle WDD60 without using the DECT Base to enjoy the comfort of the DECT Wireless headset (crystal sound experience/Super Wideband Technology/Acoustic Shield Technology, etc.). Yealink DECT Dongle WDD60 is not only easy to install, plug and play but also easy to carry and mobile use. You can use DECT headsets for multiple purposes, whether working in the office, at home or on business trips, to increase office flexibility and productivity.

Features
- 2 Micro-USB connection
- Support Yealink DECT Headset
- Utral-Portable
- Reliable Connection
- Ease to use
- Plug and play
- High Transmission Rate

Specifications

Features
Product type	Dongle
Brand compatibility	Yealink
Compatibility	WH62
Weight & dimensions
Weight	4.5 g
Power
USB connector type	USB Type-A
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)

Wi-Fi USB Dongle, IEEE802.11b/g/n, 150 Mbps

Key Features

• Reliable Connection
• Ease-of-use
• Plug and Play
• High Transmission Rate
• Lower Power Consumption

Description

Wi-Fi USB Dongle WF40
Wi-Fi USB Dongle WF40 is a low-power, small form factor device that can be implemented within offices for seamlessly connecting their IP phones to available wireless networks. This dynamic plug-and-play style USB device is an ideal office networking solution for companies—particularly, smaller organizations—seeking affordable, convenient and reliable high-speed wireless connectivity.

Supported by a powerful transmission rate of 150 Mbps, the solution is able to quickly and reliably establish Wi-Fi connectivity so that users can optimally communicate, collaborate, access pertinent documents and resources and more. Wi-Fi USB Dongle WF40 is safe, reliable and easy deployment, which guarantees a flexible and optimal user experience.

Even more, Wi-Fi USB Dongle WF40 is compliant with the IEEE802.11n and IEEE802.11b/g standards, maximizing reliability and throughput.

Specifications

Ports & interfaces
Internal	No
USB version	2.0
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
Bandwidth
Maximum data transfer rate	150 Mbit/s
Bandwidth	2.4 GHz
Wireless LAN features
Bandwidth (first)	2.4 GHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi	Yes
WLAN data transfer rates supported	150 Mbit/s
Network
Bandwidth (first)	2.4 GHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Maximum data transfer rate	150 Mbit/s
Bandwidth	2.4 GHz
Wi-Fi	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
WLAN data transfer rates supported	150 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA2-PSK
Design
Internal	No
Product colour	Black
Component for	IP Phone
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Width	18 mm
Depth	26.9 mm
Height	8 mm
Performance
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA2-PSK
Technical details
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990

2.4/5 GHz, 802.11a/b/g/n/ac, 433 Mbps, WPA/WPA2,

Key Features

• Compatible with Yealink SIP-T27G/T41S/T42S/T46S/T48S IP Phone (Version 84)
• Dual-Band Connectivity
• High Transmission Rate
• Interference Free
• Reliable Connection
• Easy to Use
• Plug and Play

Description

Yealink WF50 is a next-generation Wi-Fi USB Dongle, designed to allow users to select whether to connect to a 2.4GHz (150 Mbps) Wi-Fi network or a 5GHz (up to 433 Mbps) Wi-Fi network. With wireless connections transitting over the 5GHz band, users no longer need to worry about the interference from nearby wireless devices which may interfere with their wireless signal, guaranteeing high-quality connections perfect for establishing calls and HD
video streaming.
This dynamic plug-and-play style USB device is equipped with WPA/WPA2 encryptions, providing your network with active defense against security threats. Besides, WF50 owns the ability to establish Wi-Fi connectivity easily, quickly, and reliably, so that users can optimally communicate, collaborate and more.
Yealink WF50 is compliant with IEEE 802.11a/b/g/n/ac standard, maximazing reliability and throughput.

Specifications

Ports & interfaces
Internal	No
USB version	2.0
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
Bandwidth
Maximum data transfer rate	433 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Antenna
Frequency range	2.4 - 5 GHz
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Maximum data transfer rate	433 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Frequency range	2.4 - 5 GHz
Design
Internal	No
Product colour	Black
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	27 mm
Depth	52 mm
Height	8 mm
Weight	28 g
Performance
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Technical details
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990

WH63 E2 UC, DECT, NC Mic

Key Features

• Four Wearing Options
• Extensive DECT Range
• Crystal-clear Calls
• Noise-canceling Microphone
• Multi-devices Connection
• UC-certification

Description

The Yealink WH63 E2 is ideal for users needing maximum range with flexible wearing styles.

Specifications

Performance
Product type	Headset
Recommended usage	Calls/Music
Headset type	Monaural
Wearing style	Ear-hook
Product colour	Black
Volume control	Button
Control unit type	On-ear control unit
Control type	Buttons
LED indicators	Yes
Ports & interfaces
Connectivity technology	Wireless
Headphones
Ear coupling	Intraaural
Microphone
Microphone type	Boom
Base station
Base station colour	Black
Weight & dimensions
Weight	16 g
Packaging data
Package width	175 mm
Package depth	204 mm
Package height	101 mm
Packaging content
Base station colour	Black
Other features
Base station colour	Black

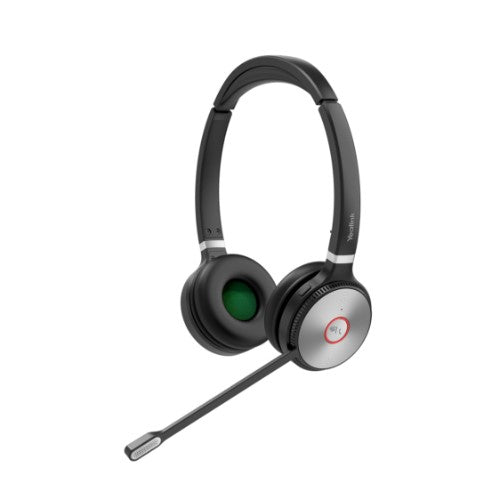

WHD622UC-DECT Wireless headset

Key Features

• Handsfree
• Acoustic Shield Technology
• Optimal Audio Experience
• All Day Wearing Comfort
• Push-to-Talk
• Stand-Alone and Paired Mode
• OTA Upgrade
• Long Wireless Range

Description

Design for Retail, Hospitality and Healthcare
In today's retail and healthcare world, more and more employees need to free their hands to take notes, serve dishes or carry things. WHD622 with Charging Cable is a DECT headset working with W70B DECT base/W80 Multi-Cell System/W90 Multi-Cell System to provide such flexibility. The headset can register to the DECT base directly as a stand-alone device or share a SIP account with a DECT handset to dial out or manage the call. With DECT technology, the headset can provide a stable connection and excellent operating range of up to 300 meters. So you can move freely on the floor without worrying about headset range. Besides the basic calling features like the answer, reject, hold, and mute, the headset also has a Push-to-Talk feature. You can send instant Push-to-Talk messages or set up a full-duplex Push-to-
Talk meeting via the headset to ensure the whole team is tightly connected. The intercom feature also allows you to make internal calls without a network, and the intercom call is free. Also, the headsets can provide you with all-day wear comfort.

Push-to-Talk
Hold the Call Control button and speak, all the members in one group can hear you and the communication is full-duplex. When you finish, just release the button. You can also press theCall Control button and Mute button at the same time, the Push-to-Talk meeting will be hold for 3 minutes. So you can talk to members with hands-free.

Available in Two Different Modes
WHD622 with Charging Cable can be used in two different modes:
In Paired Mode, it is synchronised with an existing Yealink DECT handset. For example, a common phone number can be used and the call can be made via the handset, then you can push the call the the headset.

In Stand-Alone Mode, WHD622 with Charging Cable functions as a stand-alone phone, which means it has a SIP account like a common phone.

Be Heard Crystal Clearly
With Yealink Acoustic Shield Technology, the two microphones built in WHD622 with Charging Cable block the background noise automatically but ensure participant voice be heard clearly, greatly boost the communication efficiency.

Specifications

Performance
Product type	Headset
Recommended usage	Office/Call center
Headset type	Binaural
Wearing style	Head-band
Product colour	Black
Operating keys	Answer/end call, Mute, Volume +, Volume -
LED indicators	Yes
Ports & interfaces
Connectivity technology	Wireless
Wireless range (line of sight)	300 m
Wireless range (typical building)	50 m
Frequency response (talk mode)	100 - 8000 Hz
Headphones
Ear coupling	Supraaural
Headphone frequency	20 - 20000 Hz
Impedance	32 Ω
Headphone sensitivity	92.5 dB
Driver unit	2.8 cm
Microphone
Microphone type	Boom
Microphone frequency	100 - 8000 Hz
Microphone sensitivity	-44 dB
Microphone mute	Yes
MEMS (Micro-Electro-Mechanical System) microphone	Yes
Battery
Talk time	13 h
Battery recharge time	3 h
Standby time	125 h
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Weight	122.5 g
Packaging data
Package width	170 mm
Package depth	195 mm
Package height	63 mm
Packaging content
Quick start guide	Yes
Cables included	USB
Logistics data
Master (outer) case width	345 mm
Master (outer) case length	325 mm
Master (outer) case height	400 mm
Master (outer) case gross weight	4.7 kg
Products per master (outer) case	20 pc(s)
Technical details
Output power	30 mW
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC)
Other features
Quick start guide	Yes
Cable weight	18.5 g
