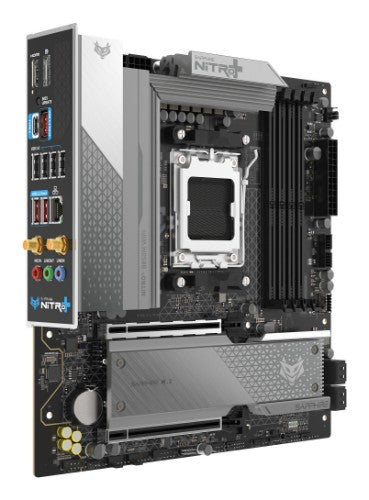

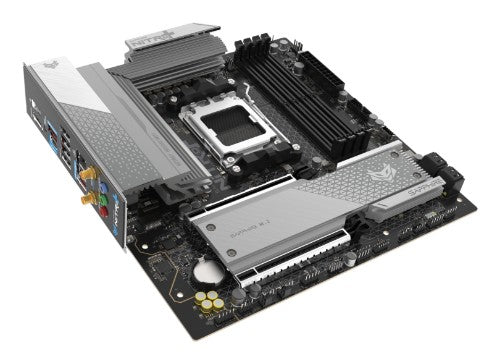

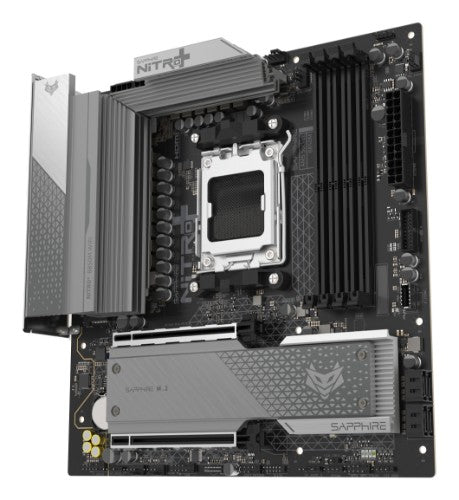

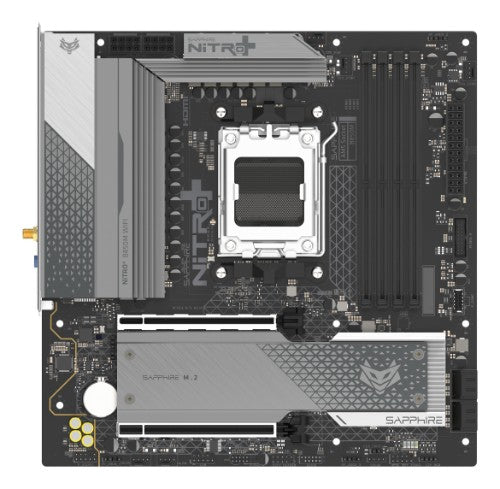

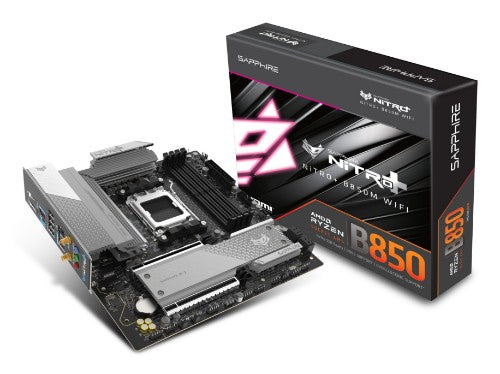

Sapphire NITRO+ B850M WIFI AMD B850 Socket AM5 micro ATX

Micro-ATX, Socket AM5, AMD B850 chipset, 4x DIMM DDR5, 5.1 channel audio, 2.5 Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.3

Key Features

• AMD AM5 CPU SUPPORT
• SAPPHIRE CORE BIOS
• 12+2+1 Phase CPU Power, 55A Per Phase
• Robust VRM, M.2 and PCH Cooling
• Dual Channel, 8000 MHz Memory OC
• PCI Express 5.0 x16
• PCIe 5.0 M.2 Support
• Debug LED

Description

SAPPHIRE NITRO+ B850M WIFI motherboard;Chipset: AMD B850;AMD Ryzen 7000, 8000, and 9000 series; 192 GB;DDR5

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
Number of SATA III connectors	4
Number of chassis fan connectors	3
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	1
Number of water pump connectors	1
Number of RGB LED pin headers	3
Performance
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	micro ATX
Audio output channels	5.1 channels
Supported processor sockets	Socket AM5
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	192 GB
Supported memory clock speed (max)	8000 MHz
Maximum internal memory per slot	48 GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported	6
Graphics
Parallel processing technology support	Not supported

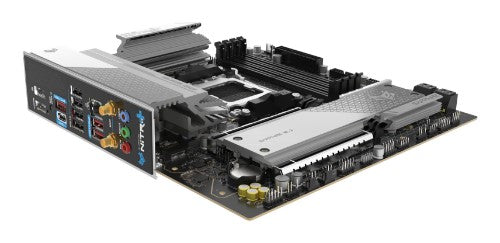

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
Headphone outputs	3
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
LAN controller	Dragon RTL8125BG
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	micro ATX
Audio output channels	5.1 channels
Supported processor sockets	Socket AM5
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio chip	Realtek ALC897
Product colour	Black
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 (Gen 5.x) slots	1
PCI Express x4 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
BIOS
Clear CMOS jumper	Yes
Weight & dimensions
Width	244 mm
Depth	235 mm
