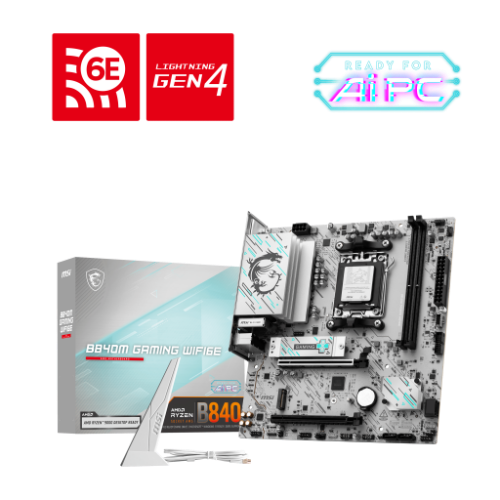

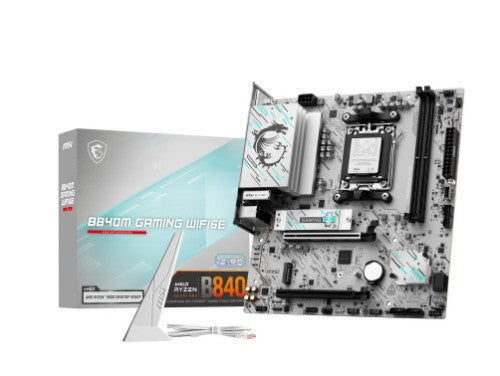

MSI B840M GAMING WIFI6E motherboard AMD B840 Socket AM5 micro ATX
MSI B840M GAMING WIFI6E motherboard AMD B840 Socket AM5 micro ATX
SKU: B840M GAMING WIFI6E
Availability:
Sale
Sold out
In Stock
10+ in stock
Regular price
$247.92
Price:
$247.92
Regular price
$249.60
Taxes included.
IN STOCK AT WAREHOUSE DELIVERY TO STORE 2-4 DAYS.
Couldn't load pickup availability
2x DDR5 (OC) 8000 MT/s, 128GB, AMD B840, 2x M.2, 4x SATA 6G, Wi-Fi 6E, 2.5G LAN, Bluetooth
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 7+2+1 POWER DESIGN
Unleash and sustain excellent performance with an enhanced VRM design built with digital CPU power system, 8-pin power connector and exclusive Core Boost technology, the B840M GAMING WIFI6E is ready to sustain heavy gaming loadings.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
View full details
Key Features
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Ultra Performance: 7+2+1 P-PAK Power System, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
- High-speed Connectivity: Wi-Fi 6E with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Description
The B840M GAMING WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Wi-Fi 6E, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 7+2+1 POWER DESIGN
Unleash and sustain excellent performance with an enhanced VRM design built with digital CPU power system, 8-pin power connector and exclusive Core Boost technology, the B840M GAMING WIFI6E is ready to sustain heavy gaming loadings.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Number of SATA Express connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Total number of SATA connectors | 4 |
| Supported storage drive interfaces | Micro SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| Number of SATA connectors | 0 |
| Number of chassis fan connectors | 5 |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 3 |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Component for | PC |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B840 |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Supported processor sockets | Socket AM5 |
| RAID levels | 0, 1, 10 |
| Windows operating systems supported | Windows 11 x64 |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5600,8000 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Micro SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Realtek RTL8125D |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Component for | PC |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B840 |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Supported processor sockets | Socket AM5 |
| Windows operating systems supported | Windows 11 x64 |
| Audio chip | Realtek ALC897 |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.5 |
| System Management BIOS (SMBIOS) version | 3.7 |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 243.8 mm |
| Technical details | |
| Total number of SATA connectors | 4 |
