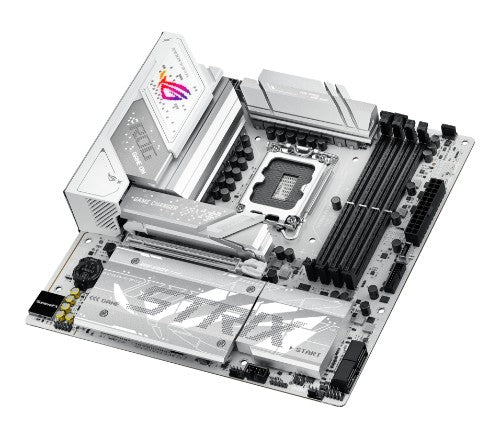

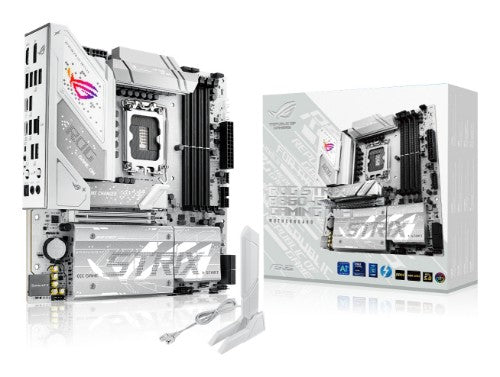

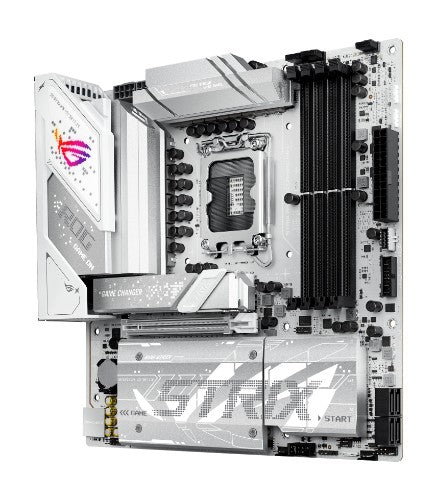

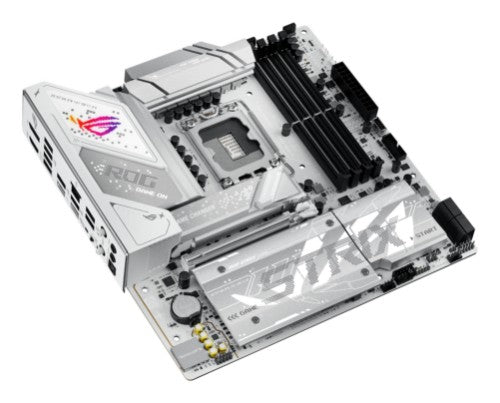

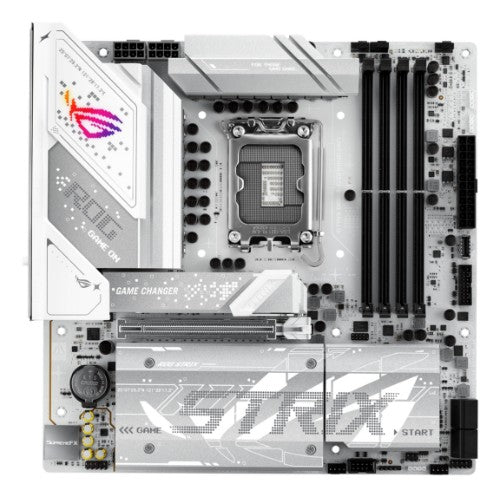

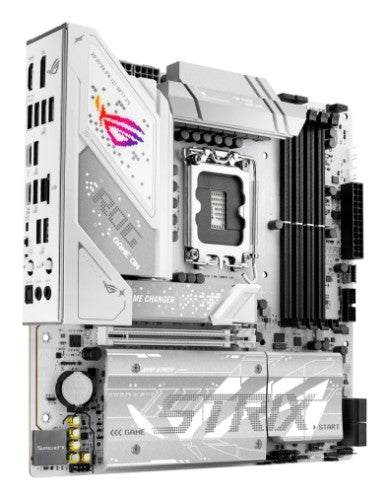

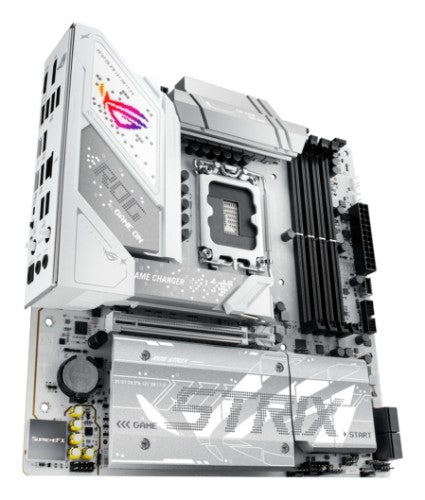

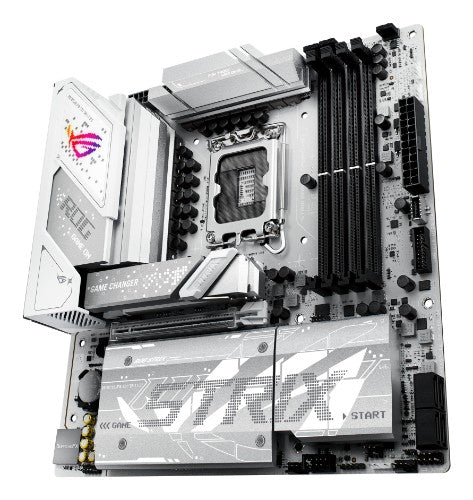

ASUS ROG STRIX B860-G GAMING WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

Intel B860, 4 x DIMM slots, max. 256GB, DDR5, M.2/SATA III, 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth 5.4, 256 Mb Flash ROM, UEFI AMI BIOS, micro-ATX

Description

ROG STRIX B860-G gaming wifi
Featuring Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, the ROG Strix B860-G offers blazing-fast data transfers, outstanding connectivity, and a flexible aesthetic that adapts to bold or subtle preferences. Designed to meet the demands of elite gaming and advanced AI PC applications, it delivers the performance and speed you need.

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Number of CPU fan connectors	1
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	9066 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	8
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	1
S/PDIF out port	Yes
Microphone in	Yes
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Windows operating systems supported	Windows 11
Audio chip	Realtek ALC1220P
Product colour	White
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 5.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Packaging data
Package width	285 mm
Package depth	274 mm
Package height	72.5 mm
Package weight	2.12 kg
Weight & dimensions
Width	244 mm
Depth	244 mm
Height	50 mm
Weight	1.23 kg
Package width	285 mm
Package depth	274 mm
Package height	72.5 mm
Package weight	2.12 kg
Other features
Height	50 mm
Weight	1.23 kg
Package width	285 mm
Package depth	274 mm
Package height	72.5 mm
Package weight	2.12 kg
