Collection: Products

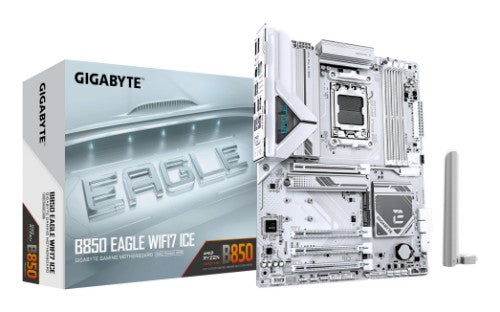

B850 EAGLE WIFI7 ICE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 2.5 GbE LAN, USB 3.2 Gen 2

Key Features

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital 8+2+2 phases VRM solution
• Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage: 3*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: HDMI, Displayport
• PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
mSATA ports quantity	0
TPM connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	2
Number of RGB LED pin headers	4
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8200 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI version	1.4
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller	Realtek RTL8125
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Realtek RTL8922AE
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC897
Product colour	White
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	22110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.89 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm
Weight	1.69 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.89 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
mSATA ports quantity	0
Weight	1.69 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	1.89 kg

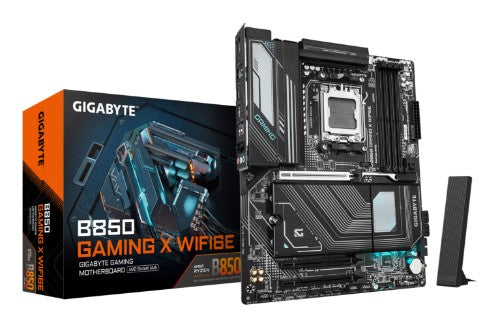

B850 GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2x2

Key Features

• Twin 12+2+2 Phases Digital VRM with DrMOS
• Dual Channel DDR5：4*DIMMs
• PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch Plus
• M.2 Gen5 with EZ-Latch Plus, Fully Covered MOSFET Heatsinks
• Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
• 2.5GbE LAN, Q-Flash Plus

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Serial port headers	1
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA III connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	2
Number of RGB LED pin headers	4
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8200 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	2.1
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Realtek RTL8111H
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio chip	Realtek ALC897
Product colour	Brown
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.38 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	35 mm
Weight	2.1 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.38 kg
Packaging content
Bundled software	Norton Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
Weight	2.1 kg
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.38 kg

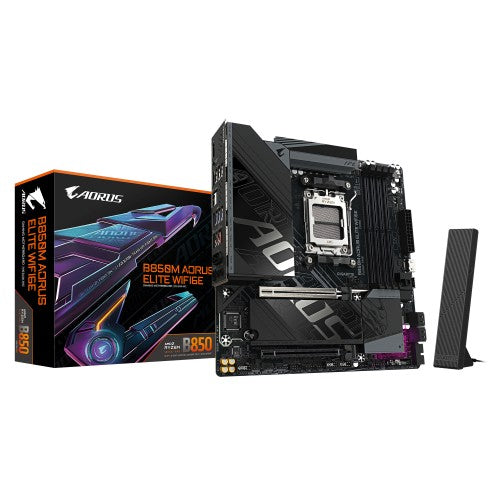

B850M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 2

Key Features

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 12+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
• Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
• Extended Connectivity : HDMI,Displayport
• PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	2
Number of RGB LED pin headers	4
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8200 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	3840 x 2160 pixels
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Headphone outputs	1
HDMI version	1.4
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Digital audio optical out	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
LAN controller	Realtek RTL8125
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Realtek RTL8852CE
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Audio chip	Realtek ALC1220-VB
Product colour	Black
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.97 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Weight & dimensions
Width	244 mm
Depth	244 mm
Height	35 mm
Weight	1.78 kg
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.97 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
Weight	1.78 kg
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.97 kg

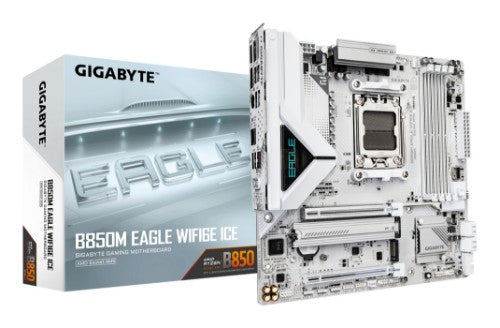

B850M EAGLE WIFI6E ICE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2

Key Features

• X3D Turbo Mode: Unleash new era gaming performance
• DDR5 OC up to 8200MT/s, dual Channel DDR5
• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 8+2+2 phases VRM solution
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Ultra-Fast Storage: 2*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	2
Number of RGB LED pin headers	4
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
RAID levels	0, 1, 5, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8200 MHz
ECC сompatibility	Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	2
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Realtek RTL8852CE
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	Socket AM5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Product colour	White
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package weight	1.9 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Width	244 mm
Depth	244 mm
Height	35 mm
Weight	1.7 kg
Package weight	1.9 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
mSATA ports quantity	0
Weight	1.7 kg
Package weight	1.9 kg

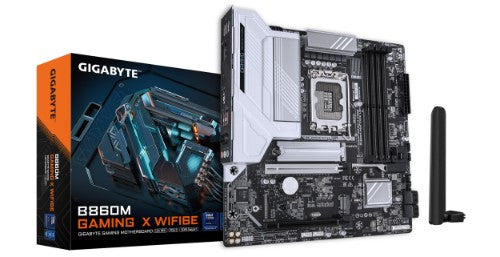

B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4

Key Features

• Hybrid Digital 8+1+2+2 Phases 60A DrMOS VRM
• Dual Channel DDR5：4*DIMMs
• PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
• M.2 Thermal Guard with EZ-Latch Click
• Advanced MOSFET Heatsinks & PCH Heatsink
• Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
• 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen 2 Type-C
• Q-Flash Plus

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	2
Thunderbolt headers	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	2
Number of RGB LED pin headers	4
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
RAID levels	0, 1, 5, 10
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 11 x64
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Memory
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	5600,6400,9200 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	9200 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	2.1
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	1
USB4 Gen 2x2 ports quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
LAN controller	Realtek RTL8125
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Features
Power source type	ATX
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported processor sockets	LGA 1851
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Windows operating systems supported	Windows 11 x64
Audio chip	Realtek ALC897
Product colour	Dark brown
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	25110
2nd M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Packaging data
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.43 kg
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Width	244 mm
Depth	244 mm
Height	35 mm
Weight	1.23 kg
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.43 kg
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Technical details
Warranty period	3 year(s)
Other features
Height	35 mm
Weight	1.23 kg
Package width	270 mm
Package depth	268 mm
Package height	68 mm
Package weight	1.43 kg

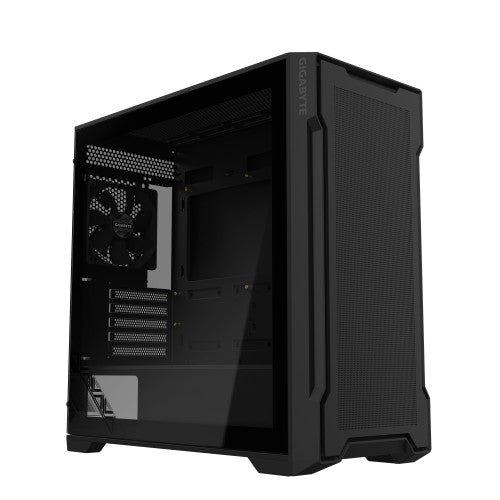

Mid pc case, usb(2), glass side panel, black, m-atx

Description

KEY FEATURE
Optimized Airflow Design
Full-Size Tempered Glass Side Panel
With USB 3.0 x2 on I/O panel
Up to 360mm Liquid Cooling Compatible
Detachable Dust Filter
Pre-installed two 120mm fans

OPTIMIZED AIRFLOW DESIGN
The front, top and partial right-side panels are vented design, delivering generous airflow for optimized cooling with premium aesthetics.

TEMPERED GLASS SIDE PANEL
Built with 4mm black tempered glass on the side panel, which adds a filter to the internal RGB lighting device, making your PC parts a stunning showpiece. The non-drilled glass design effectively reduces the risk of fragmentation, allowing users to remove it with ease and safety, also extending the product lifespan.

I/O PANEL
Equipped with two USB 3.0 ports, audio ports, a reset button and a power button.

DETACHABLE MAGNETIC FRONT PANEL
The front panel features a magnetic design, enabling gamers to effortlessly remove it for device replacement and routine cleaning.

PSU SHROUD DESIGN
Enjoy a clean look by hiding the PSU and those messy power cables inside the PSU shroud, while separating the PSU heat from the rest of the internal system. With the window design on the left side of the shroud, users can show off the cool outlook of PSU.

DETACHABLE DUST FILTER
The filters keep your PC from accumulating dust, while maintaining optimal cooling performance. The magnetic filter of top and right-side panels, along with the removable filter at the bottom, make maintenance easy.

Specifications

Ergonomics
On/off button	Yes
Design
Anti-dust filter	Yes
Form factor	Midi Tower
Type	PC
Material	Glass, Plastic, Steel
Number of 5.25" bays	0
Number of 3.5" bays	2
Supported motherboard form factors	micro ATX, Mini-ITX
Product colour	Black
Number of 2.5" bays	3
Number of internal 3.5" bays	2
Suitable for	Gaming
Side window	Yes
Number of expansion slots	7
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	41 cm
Maximum PSU length	20 cm
On/off button	Yes
Tempered glass panel(s)	Yes
Number of storage drives supported	3
Power supply
Power supply included	No
Power supply location	Bottom
Display
Built-in display	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
Cooling
Front fans installed	1x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Storage
Supported HDD sizes	2.5,3.5"
SSD form factor	2.5"
Weight & dimensions
Width	210 mm
Depth	450 mm
Height	450 mm
Weight	5.79 kg
Packaging data
Package width	282 mm
Package depth	525 mm
Package height	517 mm
Package weight	6.97 kg

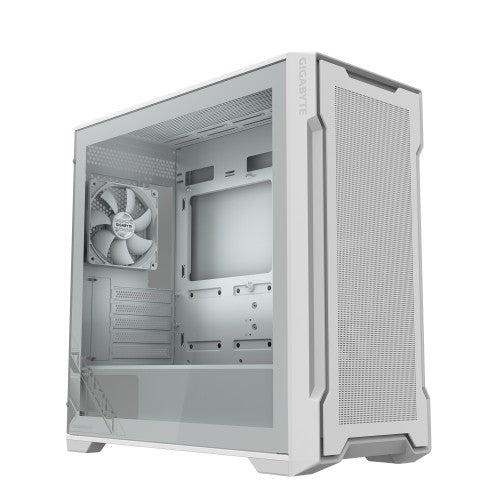

Mid Tower, Mini ITX / Micro ATX, 450 x 210 x 450 mm, 5.79 kg

Key Features

• Optimized Airflow Design
• Full-Size Tempered Glass Side Panel
• With USB 3.0 x2 on I/O panel
• Up to 360mm Liquid Cooling Compatible
• Detachable Dust Filter
• Pre-installed two 120mm fans

Description

OPTIMIZED AIRFLOW DESIGN
The front, top and partial right-side panels are vented design, delivering generous airflow for optimized cooling with premium aesthetics.

TEMPERED GLASS SIDE PANEL
Built with 4mm tempered glass on the side panel, which adds a filter to the internal RGB lighting device, making your PC parts a stunning showpiece. The non-drilled glass design effectively reduces the risk of fragmentation, allowing users to remove it with ease and safety, also extending the product lifespan.

I/O PANEL
Equipped with two USB 3.0 ports, audio ports, a reset button and a power button.

DETACHABLE MAGNETIC FRONT PANEL
The front panel features a magnetic design, enabling gamers to effortlessly remove it for device replacement and routine cleaning.

PSU SHROUD DESIGN
Enjoy a clean look by hiding the PSU and those messy power cables inside the PSU shroud, while separating the PSU heat from the rest of the internal system. With the window design on the left side of the shroud, users can show off the cool outlook of PSU.

DETACHABLE DUST FILTER
The filters keep your PC from accumulating dust, while maintaining optimal cooling performance. The magnetic filter of top and right-side panels, along with the removable filter at the bottom, make maintenance easy.

Specifications

Ergonomics
On/off button	Yes
Design
Anti-dust filter	Yes
Form factor	Midi Tower
Type	PC
Material	Glass, Plastic, Steel
Number of 5.25" bays	0
Number of 3.5" bays	2
Supported motherboard form factors	Mini-ATX
Product colour	White
Number of 2.5" bays	3
Number of internal 3.5" bays	2
Suitable for	Gaming
Side window	Yes
Number of expansion slots	5
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	41 cm
Maximum PSU length	20 cm
On/off button	Yes
Tempered glass panel(s)	Yes
Number of storage drives supported	3
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Display
Built-in display	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
Cooling
Front radiator sizes supported	360 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	360 mm
Front fans installed	1x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Number of side fans supported (max)	2
Side fans diameters supported	120 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Side radiator sizes supported	240 mm
Storage
Supported HDD sizes	2.5,3.5"
SSD form factor	2.5"
Weight & dimensions
Width	210 mm
Depth	450 mm
Height	450 mm
Weight	5.79 kg
Packaging data
Package width	282 mm
Package depth	525 mm
Package height	517 mm
Package weight	6.97 kg

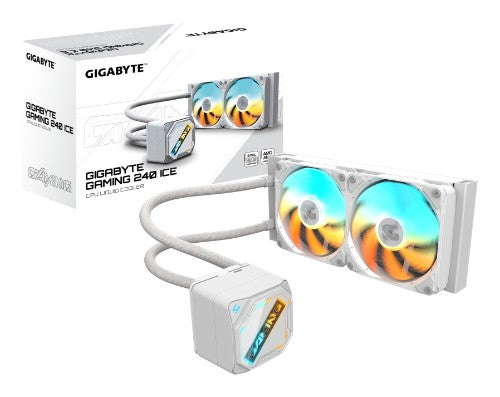

GAMING 240 ICE Liquid CPU Cooler- 2x120mm ARGB Fans, slide-in interlocking mechanism, DAISY-CHAIN, Intel LGA 1851 and AMD AM5 Compatible

Key Features

• Teflon tubing reduces coolant evaporation
• Magnetic pump cap with replaceable light panel
• DIY-friendly EZ-Chain fans with slide-lock and DAISY-CHAIN
• The ARGB fan lighting can be synchronized with other devices
• Universal fan and pump RPM control, compatible with all motherboard brands

Description

Experience superior cooling performance with GIGABYTE CPU coolers. Designed with advanced thermal solutions and high-quality components, our coolers ensure optimal temperature regulation for your processor. From air to liquid cooling solutions, GIGABYTE offers reliability and efficiency, allowing you to push your CPU to its limits with confidence and peace of mind.

Specifications

Performance
Suitable location	Processor
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1700, LGA 1851, Socket AM4, Socket AM5
Maximum airflow	61.61 cfm
Maximum air pressure	2.73 mmH2O
Thermal Design Power (TDP)	300 W
Number of fans	2 fan(s)
Fan noise level (min)	13.8 dB
Fan noise level (max)	35.8 dB
Pump bearing technology	Ceramic bearing
Pump motor speed (max)	4500 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2200 RPM
Design
Number of fans	2 fan(s)
Material	Aluminium, Copper
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Base plate material	Copper
Number of fans supported	3
Power
Thermal Design Power (TDP)	300 W
Weight & dimensions
Weight	1.36 kg
Fan dimensions (W x D x H)	120 x 25 x 2 mm
Package width	221.5 mm
Package depth	350 mm
Package height	143 mm
Package weight	1.54 kg
Radiator width	28.4 cm
Radiator depth	12 cm
Radiator height	3.5 cm
Tube length	39.5 cm
Waterblock width	6.6 cm
Waterblock depth	6.6 cm
Waterblock height	6.3 cm
Pump width	6.6 cm
Pump depth	6.6 cm
Pump height	6.3 cm
Technical details
Illumination LED	Yes
Warranty period	3 year(s)
Packaging content
CPU bracket(s)	Yes
Other features
Number of fans supported	3
