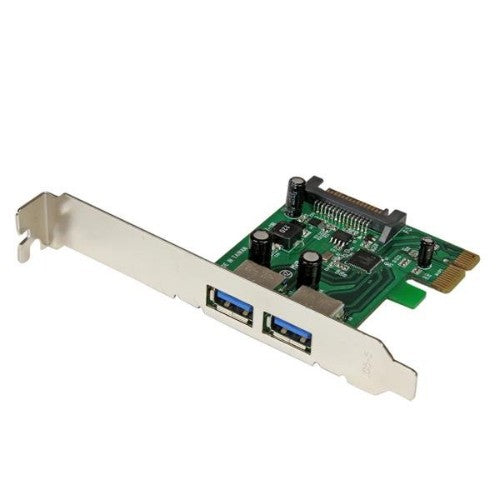

StarTech 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - 5Gbps - SATA Power - Dual Port USB 3 PCIe Controller , TAA (PEXUSB3S24)

Key Features

• Provides two external USB 3.2 Gen 1 ports with UASP support
• Supports data rates up to 5 Gbps
• Compliant with PCI Express 2.0 specifications
• Optional SATA power connector provides up to 900mA per USB port
• Supports USB Battery Charging Specification 1.2
• Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications
• Backward compatible with USB 2.0 and USB 1.0/1.1 devices
• Includes a Low-Profile/half-height installation bracket

Description

Add 2 SuperSpeed USB 3.0 (USB 3.2 Gen 1) ports with SATA power to your PCI Express-enabled PC

The PEXUSB3S24 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0).

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Specifications

Ports & interfaces
Internal	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Host interface	PCIe
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor	Low-profile
Expansion card standard	PCIe 2.0
Performance
UASP support	Yes
Chipset	Renesas/NEC - µPD720202
Data transfer rate (max)	5 Gbit/s
Product colour	Green, Metallic
Harmonized System (HS) code	84733020
Design
Internal	Yes
Product colour	Green, Metallic
Certification	CE, FCC, TAA, REACH
Features
UASP support	Yes
Chipset	Renesas/NEC - µPD720202
Data transfer rate (max)	5 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Technical details
Harmonized System (HS) code	84733020
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	18 mm
Depth	65 mm
Height	120 mm
Weight	40 g
Package width	143 mm
Package depth	175 mm
Package height	32 mm
Package weight	130 g
Packaging data
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Package width	143 mm
Package depth	175 mm
Package height	32 mm
Package weight	130 g
Logistics data
Products per master (outer) case	60 pc(s)
Master (outer) case width	382 mm
Master (outer) case length	498 mm
Master (outer) case height	318 mm
Harmonized System (HS) code	84733020
Packaging content
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Other features
Chipset	Renesas/NEC - µPD720202

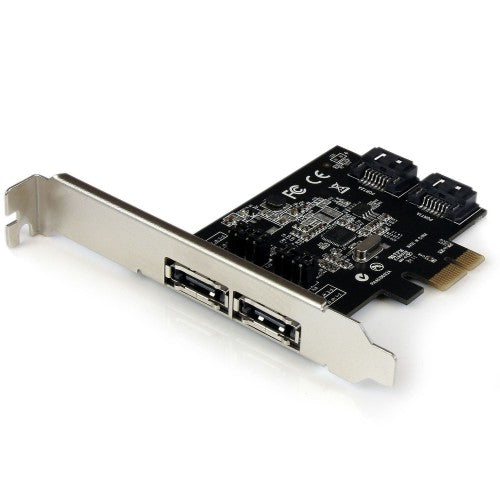

StarTech 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe x1 SATA III Adapter with Configurable Internal/External Connectivity

Key Features

• IMPROVE STORAGE CAPACITY: This 2-Port PCIe SATA and eSATA Controller Card enables support of two internal SATA or external (eSATA) drives through PCI Express; A cost-effective solution to increase your system's storage capacity
• ASM1061 CONTROLLER: This SATA and eSATA controller card features a dedicated chipset to enable two switchable SATA and eSATA 6Gbps ports via a single x1 PCIe slot; Supports FIS-based Port Multiplier, Command-based switching, NCQ, and ATA/ ATAPI commands
• WIDE COMPATIBILITY: Supports Windows and standard SATA and eSATA SSDs (solid-state drives) and HDDs (hard drives); Supports SATA III (6 Gbps) and earlier revisions; Compliant with PCI Express 2.0
• CONVENIENT SETUP: This 2-port SATA/eSATA controller card installs in a full or low-profile PCIe slot; Compatible with PCIe x1, x4, x8, or x16 slots; Includes full-profile (pre-installed) & low-profile brackets, and 7-pin SATA cable
• THE IT PRO'S CHOICE: Designed and built for IT professionals, this 2-Port SATA and eSATA Controller Card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance

Description

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Port multiplier	Yes
Host interface	PCIe
Output interface	SATA
SATA revision	3.0
eSATA ports quantity	2
Internal SATA ports quantity	2
Performance
Port multiplier	Yes
Chipset	ASMedia - ASM1061
Logical block addressing (LBA) support	48 bit
Native Command Queuing (NCQ)	Yes
Harmonized System (HS) code	84733020
Design
Internal	Yes
Certification	CE, FCC, REACH
Features
Chipset	ASMedia - ASM1061
Logical block addressing (LBA) support	48 bit
Native Command Queuing (NCQ)	Yes
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	92 mm
Depth	121 mm
Height	20 mm
Weight	48 g
Package width	216 mm
Package depth	148 mm
Package height	36 mm
Package weight	152 g
Packaging data
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Cables included	SATA
Package width	216 mm
Package depth	148 mm
Package height	36 mm
Package weight	152 g
Quantity	1
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	451 mm
Master (outer) case length	379 mm
Master (outer) case height	325 mm
Harmonized System (HS) code	84733020
Packaging content
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Cables included	SATA
Quantity	1
Other features
Chipset	ASMedia - ASM1061

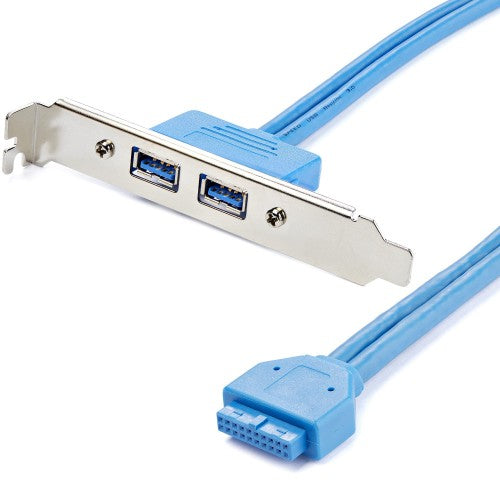

StarTech 2 Port USB 3.0 (5Gbps) A Female Slot Plate Adapter - USB 3.0 motherboard Adapter - USB 3 plate - USB 3.0 header Adapter (USB3SPLATE)

Key Features

• Easily add two SuperSpeed USB 3.2 Gen1 ports to a PC

Description

Add 2 USB 3.2 Gen1 A Female Ports to the Back of your Computer

The USB3SPLATE 2-Port USB 3.2 Gen 1 A Slot Plate converts the USB pins on the USB 3.2 Gen 1 motherboard header to 2 standard USB 3.2 Gen 1 A-type ports. The plate can be mounted on the rear panel of a computer case, adding two USB 3.2 Gen 1 A female ports for simple connection to USB peripheral devices.
The USB 3.2 Gen 1 standard supports transfer rates of up to 5Gbps, and provides connectivity and support for older USB 2.0 (480Mbps) and 1.1 (12Mbps) devices.

Specifications

Ports & interfaces
Internal	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Host interface	IDC
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Performance
Maximum cable length	0.5 m
Product colour	Blue, Stainless steel
Harmonized System (HS) code	84733020
Design
Maximum cable length	0.5 m
Internal	Yes
Product colour	Blue, Stainless steel
Certification	CE, REACH
Features
Harmonized System (HS) code	84733020
Technical details
Material	PVC
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Weight & dimensions
Depth	500 mm
Weight	72 g
Package width	197 mm
Package depth	174 mm
Package height	25 mm
Package weight	77 g
Packaging data
Package width	197 mm
Package depth	174 mm
Package height	25 mm
Package weight	77 g
Logistics data
Products per master (outer) case	100 pc(s)
Master (outer) case width	360 mm
Master (outer) case length	430 mm
Master (outer) case height	338 mm
Harmonized System (HS) code	84733020
Other features
Material	PVC

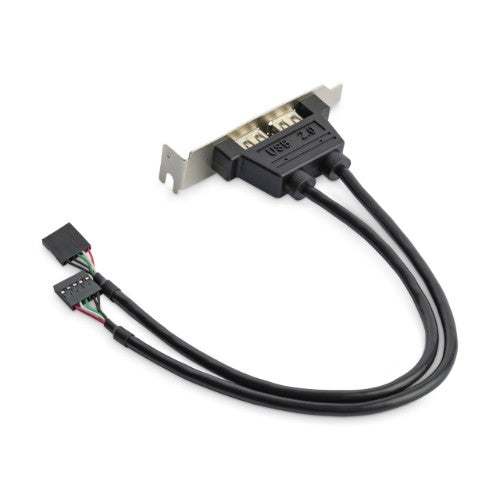

StarTech 2 Port USB A Female Low Profile Slot Plate Adapter - 2 Port USB Bracket - USB 2.0 A Female (USBPLATELP)

Key Features

• 2x USB 'A' female ports
• 2x IDC-5 female connectors
• Supports 4 or 5 pin motherboard connections
• Supports high-speed USB data transfer rates of up to 480 Mbps
• Offers 11.25" in cable length

Description

Add two external USB 2.0 ports to your small form factor PC

The USBPLATELP 2 Port Low Profile USB Bracket converts the USB pins on a USB 2.0 motherboard header to 2 standard USB A ports.

An ideal solution for small form factor computer cases, the slot plate can be mounted on the rear panel of your low profile or thin client computer case - adding two USB female ports for simple connection to USB peripheral devices.

The USB motherboard adapter cable is backed by StarTech.com’s lifetime warranty.

Specifications

Ports & interfaces
Internal	Yes
Host interface	IDC
Output interface	USB 2.0
USB 2.0 ports quantity	2
Connector(s)	PC Motherboard
Expansion card form factor	Full-height / Low-profile
Performance
Data transfer rate (max)	0.48 Gbit/s
Product colour	Grey, Metallic
Harmonized System (HS) code	84733020
Design
Internal	Yes
Product colour	Grey, Metallic
Features
Data transfer rate (max)	0.48 Gbit/s
Harmonized System (HS) code	84733020
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Weight & dimensions
Weight	100 g
Package width	127 mm
Package depth	182 mm
Package height	21 mm
Package weight	49 g
Packaging data
Package width	127 mm
Package depth	182 mm
Package height	21 mm
Package weight	49 g
Logistics data
Products per master (outer) case	200 pc(s)
Master (outer) case width	348 mm
Master (outer) case length	404 mm
Master (outer) case height	310 mm
Harmonized System (HS) code	84733020
Other features
Mac compatibility	No

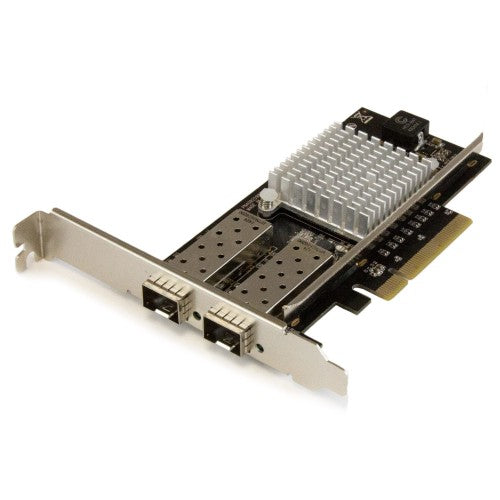

StarTech 10G Network Card - 2x 10G Open SFP+ Multimode LC Fiber Connector - Intel 82599 Chip - Gigabit Ethernet Card (PEX20000SFPI)

Key Features

• Add two 10GbE SPF+ slots to server or workstation for fast, high bandwidth connectivity
• Intel 82599 chipset with Intel® Virtualization Technology for connectivity
• Up to 20Gbps (full duplex) bandwidth per port
• PXE network boot support
• Compliant with IEEE 802.3ae (10GBASE-LR/SR only) and IEEE 802.3aq (10GBASE-LRM)
• Compliant with PCI Express Rev 2.0 specification, using PCIe x8 (or higher) slot
• Supports IEEE 802.1Q VLAN tagging
• Support for 802.3ad Link Aggregation
• Up to 15K jumbo frame support
• Dual profile (LP bracket included)

Description

Add two 10 Gigabit Fiber Ethernet ports (10 Gbps per port) to your server or workstation - using the SFP+ transceiver of your choice

Get fast, high-bandwidth connectivity with this cost-effective fiber network card. It adds two open SFP+ slots to your server or high-powered workstation, giving you an easy way to connect your server or workstation to a 10 Gigabit fiber network using the SFP+ modules of your choice.

Transfer files at faster speeds

Large file transfers, multimedia content and increased numbers of network users create constant pressures for more bandwidth in your network infrastructure. This fiber NIC lets you harness the speed and stability of a 10 Gigabit network. The NIC supports data transfers at up to 10Gbps per port, or up to 20Gbps per port in full-duplex mode.

Add scalable network connections to your server or workstation

The fiber NIC is compatible with most 10GbE SFP+ transceivers, giving you flexible configuration options to connect your computer directly to a fiber network at greater distances.

The card features two open SFP+ slots with support for interchangeable SFP+ modules, including the StarTech.com 10GBase-SR SFP+ Fiber Transceiver Module (SKU: SFP10GSRST). This gives you the option to use the modules that best suit your network needs based on distance and connector type. StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities

The 10 Gigabit network card features the Intel® 82599 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for connectivity, PXE network boot support and up to 15K jumbo frame support.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Mac Address Pass-Through Utility : To improve network security.

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The PEX20000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
PCI version	2.0
Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Ethernet LAN (RJ-45) ports	0
Fiber ports quantity	2
Fiber optic connector	SFP+
Bandwidth
Maximum data transfer rate	20000 Mbit/s
Network
Chipset	Intel® 82599
VLAN tagging	Yes
Jumbo frames	15000
Maximum data transfer rate	20000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Jumbo frames support	Yes
Flow control support	Yes
Design
Internal	Yes
Product colour	Black, Metallic
Chipset	Intel® 82599
Component for	PC/Server
System requirements
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	18 mm
Depth	135 mm
Height	120 mm
Weight	102 g
Package width	143 mm
Package depth	172 mm
Package height	30 mm
Package weight	178 g
Packaging data
Low-profile bracket	Yes
Package width	143 mm
Package depth	172 mm
Package height	30 mm
Package weight	178 g
Quick installation guide	Yes
Mounting brackets included	Yes
Packaging content
Quick installation guide	Yes
Mounting brackets included	Yes
Low-profile bracket	Yes
Performance
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Technical details
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Other features
Chipset	Intel® 82599
Jumbo frames	15000
Flow control support	Yes
Harmonized System (HS) code	85176990
Logistics data
Master (outer) case width	311 mm
Master (outer) case length	588 mm
Master (outer) case height	360 mm
Products per master (outer) case	80 pc(s)
Harmonized System (HS) code	85176990

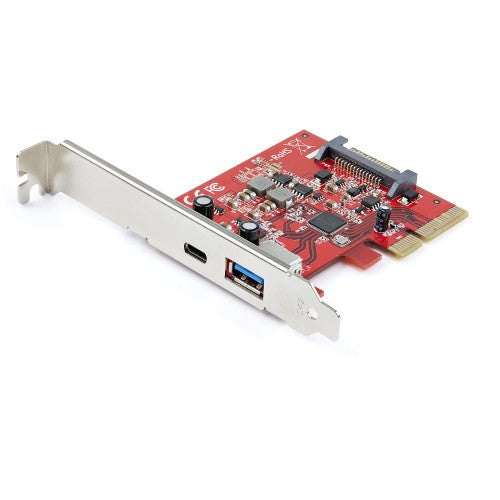

StarTech 2-Port 10Gbps USB-A & USB-C PCIe Card - USB 3.2 Gen 2 PCI Express Type C/A Host Controller Card Adapter - USB 3.2 Gen 2 PCIe Expansion Add-On Card - Windows, macOS, Linux , TAA

Key Features

• HIGH PERFORMANCE: USB 3.2 Gen 2 PCIe Add-On card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected; 10Gbps per port; 1x USB-A & 1x USB-C / Upgraded version of our popular card PEXUSB311AC2
• POWER: Expansion card w/ SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port & 5V 0.9A/4.5W via the USB-A port
• MAX PERFORMANCE WITH USB DEVICES: 2-port USB-A & USB-C PCIe card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives
• COMPATIBILITY: Installs in full or low-profile PCIe 3.0 x4 desktop/server slot (lower performance w/PCI-e 2.0); Windows/Linux/macOS auto driver install (Windows 8 & up); Works with USB 3.2/3.1/3.0/2.0
• THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty & free lifetime 24 hour support on this dual port USB-A & USB-C PCI Express Host Controller card w/ full & low profile bracket incl.

Description

PCIe 3.0 | USB Type-C & USB Type-A | 5V 3A/15W via USB-C | 5V 0.9A/4.5W via USB-A | UASP

This USB 3.2 Gen 2 card lets you add one USB-C™ port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.2 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port. USB 3.2 Gen 2 (also known as USB 3.1) PCIe Add-On card supports Multiple INs, maintains optimal bandwidth even when mixed speed devices are connected. Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type. USB 3.2 Gen 2 Performance By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.2 Gen 2 and rest assured you're ready for both current and future high-bandwidth USB-A and USB-C devices. With higher data throughput support, this USB 3.2 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.2 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions. Compatible with Older USB Devices Connecting older peripherals isn't a problem. This versatile dual-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C™ port using a variety of USB-C cables and adapters. Easy Installation The USB 3.2 card is compatible with a broad range of Windows®; macOS and Linux® operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers. Faster Transfer Speeds with UASP The card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows® 8, macOS (10.8 or above), and Linux®. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 2 at peak performance. At the same peak in testing, UASP also shows an 80% reduction in required processor resources. The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	PCIe
Output interface	USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 3.0
Performance
UASP support	Yes
Chipset	ASMedia - ASM3142
Data transfer rate (max)	10 Gbit/s
Product colour	Red
Harmonized System (HS) code	84733020
Design
Mean time between failures (MTBF)	2684396 h
Internal	Yes
Product colour	Red
Features
UASP support	Yes
Chipset	ASMedia - ASM3142
Data transfer rate (max)	10 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	20 - 80%
Technical details
Harmonized System (HS) code	84733020
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	81 mm
Depth	120 mm
Height	19 mm
Weight	48 g
Package width	143 mm
Package depth	174 mm
Package height	33 mm
Package weight	123 g
Packaging data
Mounting brackets included	Yes
Quick installation guide	Yes
Package width	143 mm
Package depth	174 mm
Package height	33 mm
Package weight	123 g
Logistics data
Products per master (outer) case	60 pc(s)
Master (outer) case width	381 mm
Master (outer) case length	377 mm
Master (outer) case height	517 mm
Harmonized System (HS) code	84733020
Packaging content
Mounting brackets included	Yes
Quick installation guide	Yes
Other features
Chipset	ASMedia - ASM3142

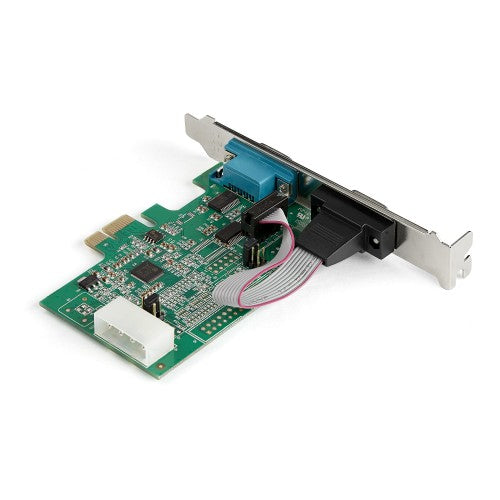

StarTech 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16950 UART - Expansion Card - Windows & Linux , TAA (PEX2S953)

Key Features

• 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit / Upgraded version of our popular card PEX2S952
• OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9; Each of the 2 ports are individually configurable
• STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed & 2x low profile brackets incl for versatile install; supports Windows & Linux
• VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
• THE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance

Description

PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible

This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952 .

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

• Industry standard 16950 UART compatible
• Supports max baud rate of up-to 921.6Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 256-byte depth FIFO cache per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits (one per port)
• Asix AX99100 chipset
• Base PCI Express 1.1 compliant
• Low and full-profile brackets included

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

PEX2S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Host interface	PCIe
Output interface	Serial
Serial interface type	RS-232
Serial ports quantity	2
Expansion card standard	PCIe 1.1
Performance
Stop bits	1, 1.5, 2
Data bits	5, 6, 7, 8, 9
Baud rate	921.6 Kbit/s
Chipset	Asix AX99100
FIFO (First In, First Out)	256 B
Product colour	Green
Harmonized System (HS) code	84733020
Design
Mean time between failures (MTBF)	222366 h
Internal	Yes
Product colour	Green
Features
Stop bits	1, 1.5, 2
Data bits	5, 6, 7, 8, 9
Baud rate	921.6 Kbit/s
Chipset	Asix AX99100
FIFO (First In, First Out)	256 B
Parity bit	Even, Mark, No, Odd, Space
Flow Control type	No, RTS/CTS, XON/XOFF
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-20 - 100 °C
Operating relative humidity (H-H)	5 - 85%
Technical details
Harmonized System (HS) code	84733020
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Weight & dimensions
Width	63 mm
Depth	75 mm
Height	15 mm
Weight	56 g
Package width	144 mm
Package depth	170 mm
Package height	30 mm
Package weight	136 g
Packaging data
Quick installation guide	Yes
Package width	144 mm
Package depth	170 mm
Package height	30 mm
Package weight	136 g
Quantity	1
Logistics data
Products per master (outer) case	75 pc(s)
Master (outer) case width	359 mm
Master (outer) case length	690 mm
Master (outer) case height	310 mm
Harmonized System (HS) code	84733020
Packaging content
Quick installation guide	Yes
Quantity	1
Other features
Chipset	Asix AX99100

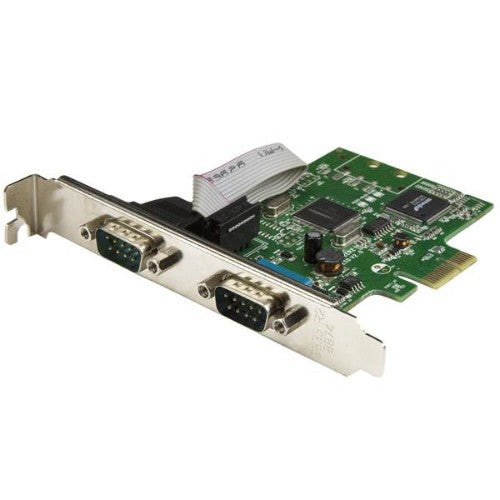

StarTech 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card , TAA (PEX2S1050)

Key Features

• Dual-channel 16C1050 UART for full compatibility with 16C1050 devices
• Maximum data transfer rate of 460Kbps
• Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
• 256-Byte deep FIFO per transmitter and receiver
• In-band software flow control using programmable Xon/Xoff in both directions
• Out-of-band hardware flow control using RTS / CTS
• Support for 5,6,7 or 8 data bits
• Standard profile bracket installed, optional dual low-profile brackets included

Description

Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot

This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.

Convenient system upgrades through PCIe

The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.

The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.

High-performance serial communication

The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.

Easy installation

The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.

The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Host interface	PCIe
Output interface	Serial
Serial interface type	RS-232
Serial ports quantity	2
Expansion card form factor	Full-height / Low-profile
Performance
Data bits	5, 6, 7, 8
Baud rate	460.8 Kbit/s
Chipset	SystemBase - SB16C1052PCI
FIFO (First In, First Out)	256 B
Full duplex	Yes
Flow control support	Yes
Harmonized System (HS) code	84733020
Design
Internal	Yes
Certification	CE, FCC, Microsoft WHQL
Features
Data bits	5, 6, 7, 8
Baud rate	460.8 Kbit/s
Chipset	SystemBase - SB16C1052PCI
FIFO (First In, First Out)	256 B
Full duplex	Yes
Flow control support	Yes
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-20 - 100 °C
Operating relative humidity (H-H)	5 - 85%
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	120 mm
Depth	103 mm
Height	20 mm
Weight	61 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	149 g
Packaging data
Mounting brackets included	Yes
Drivers included	Yes
Quick installation guide	Yes
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	149 g
Logistics data
Products per master (outer) case	75 pc(s)
Master (outer) case width	356 mm
Master (outer) case length	682 mm
Master (outer) case height	320 mm
Harmonized System (HS) code	84733020
Packaging content
Mounting brackets included	Yes
Drivers included	Yes
Quick installation guide	Yes
Other features
Chipset	SystemBase - SB16C1052PCI
Flow control support	Yes
