Collection: PC/Workstation Barebones

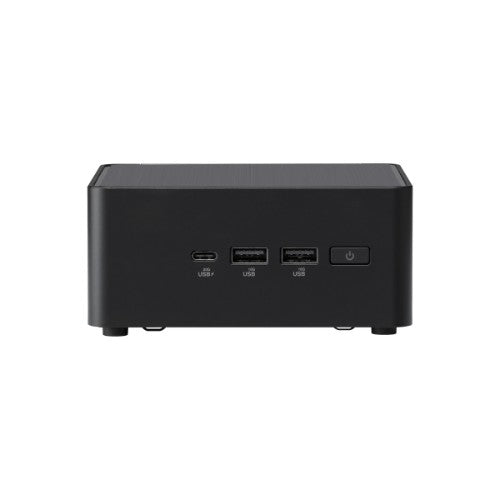

NUC 14 Pro Kit, Intel Core U5 125H Processor, 144mm x 112mm x 54mm

Key Features

• Performance: Delivers best-in-class performance among comparable mini-PC offerings
• Manageability: Most comprehensive mini-PC with Intel vPro® Enterprise for exceptional security, manageability, and stability
• AI Ready: Harnesses the prowess of Intel® Core™ Ultra processors’ three AI engines for high throughput, low power, and fast response
• Wi-Fi Sensing: Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
• Wireless Connectivity: Delivers seamless connectivity for certified Bluetooth® dongle-free experiences
• Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster

Description

Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.

Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.

With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

Specifications

Processor
Built-in processor	Yes
Processor model	125H
Processor boost frequency	4.5 GHz
Processor threads	18
Processor family	Intel Core Ultra 5
Processor cores	14
Processor manufacturer	Intel
Processor cache	18 MB
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.5 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.7 GHz
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor generation	Intel® Core™ Ultra (Series 1)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	5600 MHz
Maximum internal memory	96 GB
Video
Graphics card family	Intel
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	M.2,2.5
SSD form factor	M.2
NVMe	Yes
Graphics
Graphics card family	Intel
On-board graphics card	Yes
On-board graphics card model	Intel Arc Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth version	5.3
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 2.0 ports quantity	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Thunderbolt 4 ports quantity	2
Design
Product type	Mini PC barebone
On/off switch	Yes
Cooling type	Active
Product colour	Black
Performance
Windows operating systems supported	Windows 11
Linux operating systems supported	Yes
Processor special features
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Colour
Product colour	Black
Technical details
Cooling type	Active
Software
Windows operating systems supported	Windows 11
Linux operating systems supported	Yes
Management features
On/off switch	Yes
Power
Power supply type	External AC adapter
Weight & dimensions
Width	144 mm
Depth	112 mm
Height	54 mm
Weight	570 g

NUC 13 Pro, Intel Core i3-1315U Processor (10M Cache | up to 4.50 GHz), up to 64GB dual-channel DDR4-3200 SODIMMs

Key Features

• Get the latest in business performance with 13th Gen Intel Core processors featuring up to 14 cores (6P+8E) and up to 64GB dual-channel memory
• For professional-grade performance, the 13th Gen Intel Core i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel Smart Cache, and 35W TDP
• Businesses get the fast memory they need with up to 64GB dual-channel DDR4-3200 SODIMMs
• Wired and wireless connections are lightning fast with up to a 2.5 Gbps Intel Ethernet port and Intel Wi-Fi 6E (Gig+)
• Dual HDMI 2.1 and Thunderbolt 4 ports give businesses flexibility to connect up to 4K extended displays

Description

Business Driver. Space Saver.
NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.
It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro® Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.
The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.
To provide an eco-friendly foundation for businesses, NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.

Specifications

Motherboard
Motherboard form factor	UCFF
Number of processors supported	1
Processor
Built-in processor	Yes
Processor model	i3-1315U
Processor boost frequency	4.5 GHz
Processor threads	8
Processor family	Intel® Core™ i3
Processor cores	6
Number of processors supported	1
Processor manufacturer	Intel
Processor cache	10 MB
Performance cores	2
Efficient cores	4
Performance-core Max Turbo Frequency	4.5 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Processor generation	Intel Core i3-13xxx
Memory
Memory voltage	1.2 V
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
ECC	No
Video
Graphics card family	Intel
On-board graphics card	No
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Number of storage drives supported	2
SSD form factor	M.2
NVMe	Yes
Graphics
Graphics card family	Intel
On-board graphics card	No
Number of displays supported	4
On-board graphics card model	Intel Iris Xe Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I226-V
Bluetooth version	5.3
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
Serial port via internal header	No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Combo headphone/mic port	Yes
USB 2.0 ports quantity	1
HDMI version	2.1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Thunderbolt 4 ports quantity	2
Expansion slots
PCI Express slots version	4.0
Design
VESA mounting	Yes
Motherboard form factor	UCFF
Product type	Mini PC barebone
On/off switch	Yes
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	UCFF
Performance
Windows operating systems supported	Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise
Linux operating systems supported	Yes
Motherboard form factor	UCFF
Number of processors supported	1
Number of displays supported	4
Colour
Product colour	Black
Technical details
Cooling type	Active
Chassis type	UCFF
Indication
LED indicators	Yes
Software
Windows operating systems supported	Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise
Linux operating systems supported	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	4
Power
Power supply type	External AC adapter
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	37 mm
Other features
Chassis type	UCFF

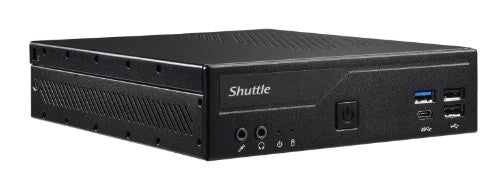

1.3 L, H610, LGA1700, 2x DDR4 SODIMM, 2x M.2, 2.5", HDMI, 2x DP, 2x USB 3.2 Gen1, 2x USB 2.0, RJ45 GbE, RJ45 2.5 GbE, RS232, 120 W

Description

12th Gen Hybrid Power Makes Multitask Easy
Shuttle XPC Slim series DH610 supports Intel® 12th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.

Intel® 12th Gen processor
Based on the H610 chipset, DH610 is designed for 12th Gen Intel® processors in the LGA1700 socket and supports up to 64GB (32GBx2) of DDR4-3200 memory, which delivers a performance improvement uplift of up to 28%, providing powerful computing capacity. In addition, with Intel® UHD Graphics 700 series integrated, DH610 is potential for multi-platform AI deployment.

Triple-Display Productivity
With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.

Strong Expansion Capacity with M.2
With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.

Rich Connectivity and High-speed Intel® 2.5GbE LAN
DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN and Teaming Mode functions to provide high-speed data transfer capability and a better business networking integration.

Exclusive Cooling Technology
DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.

Specifications

Motherboard
Processor socket	LGA 1700
Number of processors supported	1
Processor
Built-in processor	No
Processor socket	LGA 1700
Number of processors supported	1
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
Internal memory installed	No
Video
Graphics card family	Intel
On-board graphics card	Yes
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
Storage drive interface	M.2, Serial ATA, Serial ATA II, Serial ATA III
Storage drives installed	No
Graphics
Maximum resolution	3840 x 2160 pixels
Graphics card family	Intel
On-board graphics card	Yes
Number of displays supported	3
Audio
Built-in speaker(s)	No
Network
Ethernet LAN	Yes
Wi-Fi	No
Ports & interfaces
Number of SATA III connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	4
Microphone in	Yes
Headphone outputs	1
HDMI version	2.0b
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
DisplayPorts quantity	2
DC-in jack	Yes
COM ports quantity	2
Expansion slots
Number of M.2 (M) slots	2
Design
VESA mounting	Yes
Product type	Mini PC barebone
On/off switch	Yes
LED indicators	HDD, Power
Cooling type	Active
Product colour	Black
Chassis type	1.3L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Performance
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Linux operating systems supported	Yes
Maximum resolution	3840 x 2160 pixels
Processor socket	LGA 1700
Number of processors supported	1
Number of displays supported	3
Colour
Product colour	Black
Technical details
Quick start guide	Yes
Cooling type	Active
Chassis type	1.3L sized PC
Cable lock slot type	Kensington
Cable lock slot	Yes
Packaging data
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Indication
LED indicators	HDD, Power
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Linux operating systems supported	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	3
Power
AC input voltage	100 - 240 V
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Power supply type	External AC adapter
Power supply	120 W
Weight & dimensions
Width	165 mm
Depth	190 mm
Height	43 mm
Packaging content
Quick start guide	Yes
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Other features
Chassis type	1.3L sized PC
